Product Details:
|
| Max. Force: | 50 KN (5000kg) | Frequency Range: | 1-3000 Hz |
|---|---|---|---|
| Continuous Displacement: | 50 Mm | Max Velocity: | 200 Cm/s |
| Axial Direction: | Vertical And Horizontal | Power Supply: | AC 380V 50Hz |
| Highlight: | packaging testing equipments,vibration test table |
||

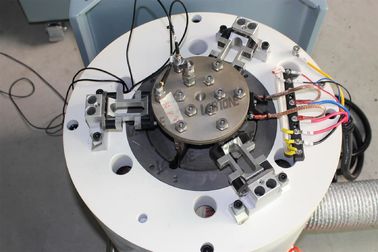

3 Axis Large Force Vibration Test System Comply with MIL-STD / DIN Standard
Introduction:
EV series of electromagnetic vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.
Technical Specifications: EV250
| Parameters of VG5000/50 electromagnetic vibration generator | ||||
| Max. sine force | 5000Kg.f peak (50kN) | |||
| Max. random force | 5000Kg.f r.ms (20kN) | |||
| Max. shock force | 10000Kg.f peak (100kN) | |||
| Frequency range | 1 - 3000 Hz | |||
| Max. displacement | 51 mm p-p | |||
| Max. velocity | 2m/s | |||
| Max. acceleration | 80G (980 m/s2) | |||
| Max. load (sine) F=M.A | ||||
| 5G (49 m/s2) | 10G (98 m/s2) | 20G (196 m/s2) | 30G (294 m/s2) | |
| 950kg | 450kg | 200kg | 110kg | |
| First-order resonance frequency | 2700 Hz±5% | |||
| Effective load | 1000 kg | |||
| Vibration isolation frequency | 2.5 Hz | |||
| Diameter of armature | Ф450 mm | |||
| Mass of armature | 50kg | |||
| Flux leakage | ＜10gauss | |||
| Allowable eccentric moment | ＞500N.m | |||
| Shaker dimension | 1600 × 1120 × 1340 mm | |||
| Shaker weight | About 3500Kg | |||
Meet International Standards:
MIL-STD-810G, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.

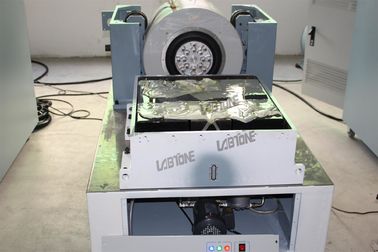

Horizontal oil film slip table
The horizontal slip table is designed to have high tilting moment and lateral restriction. This design concept is combined with standard horizontal slip table to enable high dynamic moment limit and keep guide oil film damping feature. The horizontal slip table is composed of a slipper, a connector, a natural granite slab, horizontal slip table base and an independent oil source.
