Product Details:
|
| Rated Sine Force: | 3 KN | Maximum Velocity: | 120 Cm/s |
|---|---|---|---|
| Power Amplifier: | Amp3k | Payload: | 120 Kg |
| Armature Mass: | 3 Kg | Power Supply: | AC 380V 50Hz |
| Highlight: | packaging testing equipments,vibration lab equipment |
||

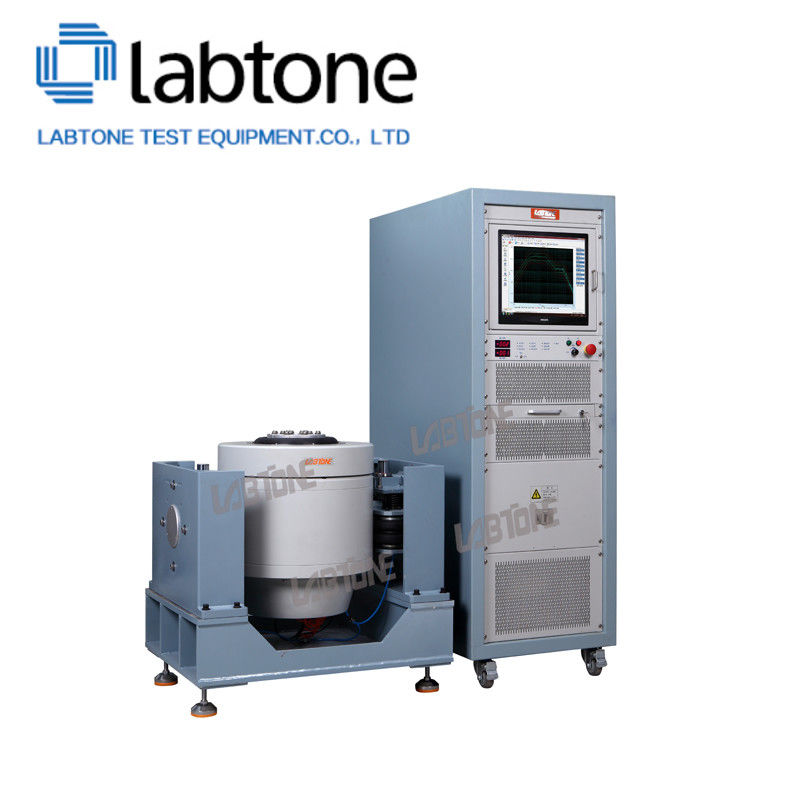

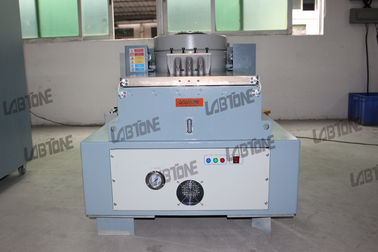

3-Axis Vibration Test Systems, Shaker Table For Automotive Parts Road Simulation
Introduction
Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.
Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.
| Parameters of VG300-40 electrodynamic shaker | ||||
| Max. sine exciting force | 300Kg.f peak (3KN) | |||
| Max. random exciting force | 300Kg.f r.ms (3KN) | |||
| Max. shock exciting force | 600Kg.f peak (6KN) | |||
| Frequency range | 2～2500Hz | |||
| Max. displacement | 38 mm p-p | |||
| Max. velocity | 1.8m/s | |||
| Max. acceleration | 100G (980 m/s2) | |||
| Max. load (sine) F=M.A | ||||
| 5G (49 m/s2) | 10G (98 m/s2) | 20G (196 m/s2) | 30G (294 m/s2) | |
| 57kg | 27kg | 12kg | 7kg | |
| Effective load | 120 kg | |||
| Vibration isolation frequency | 2.5 Hz | |||
| Diameter of armature | Ф150 mm | |||
| Mass of armature | 3kg | |||
| Table screw | 13×M8 | |||
| Flux leakage | ＜10gauss | |||
| Allowable eccentric moment | 300N.m | |||
| Shaker dimensions | 800×565×670 mm | |||
| Weight | About 480Kg | |||
| Amp3K digital switch power amplifier | |
| Output power | 4KVA |
| Output voltage | 100V |
| Output current | 30A |
| Amplifier efficiency | ≥90% |
| Switching frequency | 116KHz |
| Signal to noise ratio | ≥65dB |
| Noise | ≤70dB |
| Amplifier dimension | 880 ×590 ×1125 mm |
| Servo protection system | |
| Functions: | Temperature, air pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss, etc. |
| Digital vibration controller | |
| Hardware configuration: | 2-channel input, 1-channel output |
| Control computer | 1 set |
Features:
Working Principle:
Specifications: EV203-EV220
| Model | EV203 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/40 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 2-2500 | 2-3000 | 2-3000 | 2-2500 |
| Max Exiting Force(kg.f) | 300 | 600 | 1000 | 2000 |
| Max. Displacement (mmp-p) | 38 | 50 | 50 | 50 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 120 | 200 | 200 | 200 |
| Payload(kg) | 120 | 200 | 300 | 400 |
| Armature Mass(kg) | 3 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling | |||
| Vibration Generator Weight(kg) | 460 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*555*670 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling | |||
| Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||
| Aggregate Capacity(KW) | 9 | 20 | 25 | 35 |
Customer Services
Presales:
In-Sales:
After-Sales:

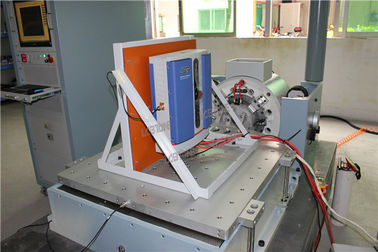

Detailed Pictures:
