Product Details:
|
| Name: | Wide Frequency Range And Long Stroke Vibration Test Equipment For Automobile Parts | Random Force: | 3000 Kg.f(30kN) |
|---|---|---|---|
| Shock Force: | 6000 Kg.f (60kN) | Amplitude: | 100 |
| Armature Diameter: | ￠320 Mm | Armature Weight: | 30kg |
| Max. Payload: | 400kg | ||
| Highlight: | vibration test table,vibration lab equipment |
||

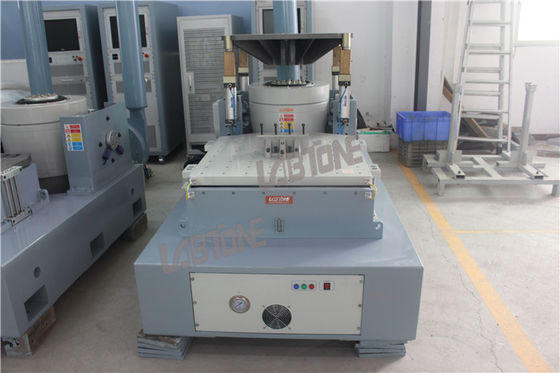

Wide Frequency Range and Long Stroke Vibration Test Equipment for Automobile Parts
Vibration Test Equipment Manufacturer
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.
Vibration Test Equipment standards : MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Vibration Test Equipment Main Features
Vibration Test Equipment Working Principle:
| Model | EV340 | EV350 | EV420 | EV430 | EV440 | EV450 |
| Vibration Generator | VG4000/76 | VG5000/76 | VG2000/100 | VG3000/100 | VG4000/100 | VG5000/100 |
| Frequency(Hz) | 2-2500 | 2-2500 | 2-3000 | 2-2500 | 2-2500 | 2-2500 |
| Max Exiting Force(kg.f) | 4000 | 5000 | 2000 | 3200 | 4000 | 5000 |
| Max. Displacement (mmp-p) | 76 | 76 | 100 | 100 | 100 | 100 |
| Max. Acceleration(g) | 80 | 100 | 90 | 71 | 66 | 71 |
| Max. Velocity(cm/s) | 200 | 200 | 200 | 250 | 250 | 250 |
| Payload(kg) | 1000 | 1000 | 500 | 500 | 800 | 1000 |
| Armature Mass(kg) | 50 | 50 | 23 | 45 | 60 | 70 |
| Armature Diameter(mm) | φ440 | φ440 | φ320 | φ400 | φ445 | φ445 |
| Cooling Method | Forced Air Cooling | |||||
| Vibration Generator Weight(kg) | 3500 | 3800 | 2000 | 3200 | 4200 | 4500 |
| Vibration Generator Dimension L*W*H(MM) | 1100*1300*1520 | 1100*1300*1520 | 850*1000*1100 | 1100*1300*1440 | 1100*1300*1520 | 1100*1300*1520 |
| Power Amplifier | Amp55k | Amp70k | Amp25k | Amp40k | Amp60k | Amp70k |
| Cooling Method | Forced Air Cooling | |||||
| Power Amplifier Weight(kg) | 800 | 900 | 550 | 600 | 800 | 900 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1920 | 800*550*1920 | 800*550*1920 | 800*550*1920 | 800*550*1920 | 800*550*1920 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||||
| Aggregate Capacity(KW) | 80 | 90 | 45 | 64 | 85 | 85 |
