Product Details:
|
| Max Exiting Force: | 300 Kg | Frequency Range: | 2-4000 Hz |
|---|---|---|---|
| Max. Displacement: | 25 Mm | Max. Velocity: | 200 Cm/s |
| Payload: | 110 Kg | Power Supply: | AC 3-phase 380V / 50Hz |
| Highlight: | shaker testing device,vibration table testing equipment |
||
Random Vibration System Meet Amazon Series 6 (SIOC and OB) Test Protocols
Introduction:
Labtone supplies vibration test systems to reproduce real-world environmental conditions for industrial manufacturers(electronics, automotive parts, Energy, etc...) and offers technology capable of reproducing a wide-variety of test requirements - vibration (sine, random, shock, SoR, RoR, RSTD and others), data recording and dynamic signal analysis.
Specifications: EV203-EV220
| Model | EV203 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/40 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 2-2500 | 2-3000 | 2-3000 | 2-2500 |
| Max Exiting Force(kg.f) | 300 | 600 | 1000 | 2000 |
| Max. Displacement (mmp-p) | 38 | 50 | 50 | 50 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 120 | 200 | 200 | 200 |
| Payload(kg) | 120 | 200 | 300 | 400 |
| Armature Mass(kg) | 3 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling | |||
| Vibration Generator Weight(kg) | 460 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*555*670 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling | |||
| Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||
| Aggregate Capacity(KW) | 9 | 20 | 25 | 35 |
Features:
Working Principle:
Customer Services:
Presales
In-Sales
After-Sales
Company Profile:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.

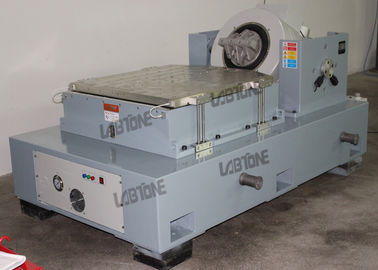

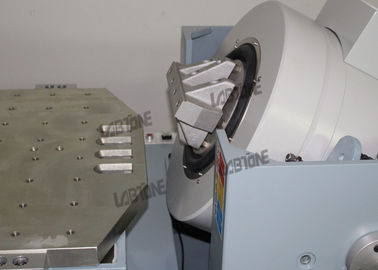

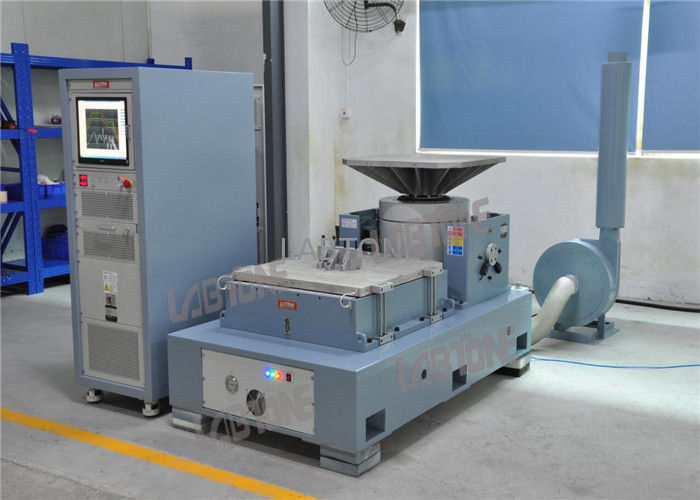

Reference Picture:
