Product Details:
|
| Drop Height: | 300-1500mm | Specimen Weight: | 85kg |
|---|---|---|---|
| Specimen Dimension: | 800*800*800mm | Drop Mode: | Freedom |
| Machine Dimension: | 1700*1200*2150mm | Machine Weight: | 450kg |
| Warranty: | 12 Months | Air Pressure: | 0.5-0.7Mpa |
| Standard: | ISTA | Name: | ISTA Packaging Testing Drop Test Equipment Performs Free Fall Drop Test For Packaging Design |
| Highlight: | free fall drop test equipment,impact test equipment |
||

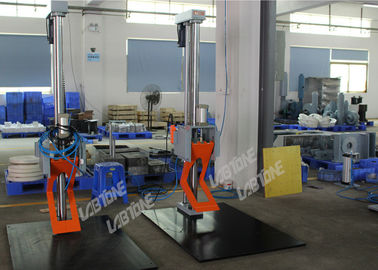

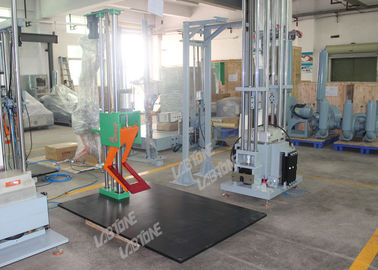

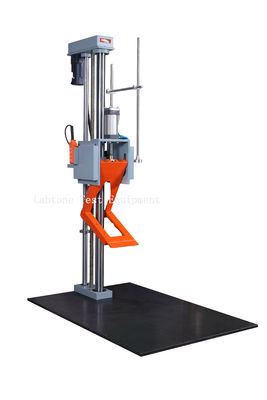

Lab Drop Tester ISTA 6-Amazon Drop Test Machine for Package Free Fall Drop
Functions and Features
1. Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards.
2. Can perform surfaces, corner and edge drops.
3. Precise guiding system and pneumatical driving;
4. Unique swing arm structural design, escape acceleration of swing arm greater than 3G.;
5. With double column guide, hydraulic buffer will absorb the dynamic force of the swing arm, such that the movement is stable, reliable with low noise
6. Self-locking screw in lifting mechanism to prevent accidental downward glide.
7. Automatic pneumatic interlocks to prevent abnormal detachment of swing arm.
8. Extensible support bracket and steel base plate.
Specifications
| Model | DT150 | DT200 |
| Drop height range (mm) | 300---1500 | 300----2000 |
| Specimen max.weight (kg) | 85 | 85 |
| Specimen max. size (mm) | 800*800*800 | 800*800*800 |
| Drop mode | Freedom | |
| Machine Dimension (mm) | 1500*1000*2150 | 1700*1200*2750 |
| Machine weight (kg) | 480 | 550 |
| Power supply | AC220V 50Hz compressed air 0.5~0.7Mpa | |
| Standards | ISTA 1A 2A, ISO2248-72(E) | |
1. Q: What is your warranty ?
2. Q: How-to vedio provided ?
3. Q: Is the machine made in your own plant ?
4. Q: What about the quality ?
