Product Details:
|
| Drop Height: | 300-1500mm | Specimen Weight: | 85kg |
|---|---|---|---|
| Specimen Dimension: | 800*800*800mm | Drop Mode: | Freedom |
| Machine Dimension: | 1700*1200*2150mm | Machine Weight: | 450kg |
| Warranty: | 12 Months | Air Pressure: | 0.5-0.7Mpa |
| Standard: | ISTA | Name: | LAB Drop Testers, Drop Shock Package Testers, Drop Test Equipment Manufacturer |
| Highlight: | free fall drop test equipment,impact test equipment |
||

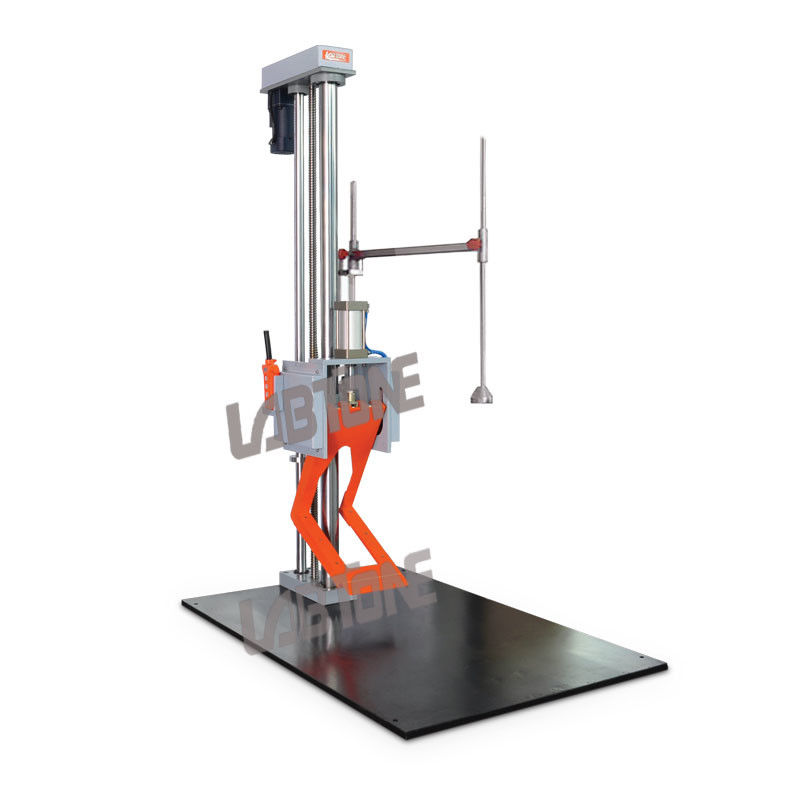

LAB Drop Testers, Drop Shock Package Testers, Drop Test Equipment Manufacturer
Packaging drop test Machine is used to determine the ruggedness of packages and the effectiveness of their interior cushioning when exposed to impact during material handling and shipping.
High Accuracy Drop Tester for Packaged Freight specifications
| Model | DT150 | DT200 |
| Drop height range (mm) | 300---1500 | 300----2000 |
| Specimen max.weight (kg) | 85 | 85 |
| Specimen max. size (mm) | 800*800*800 | 800*800*800 |
| Drop mode | Freedom | |
| Machine Dimension (mm) | 1500*1000*2150 | 1700*1200*2750 |
| Machine weight (kg) | 480 | 550 |
| Power supply | AC220V 50Hz compressed air 0.5~0.7Mpa | |
| Standards | ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27 | |
Functions and Features
1 Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards.
2 Can perform surfaces, corner and edge drops.

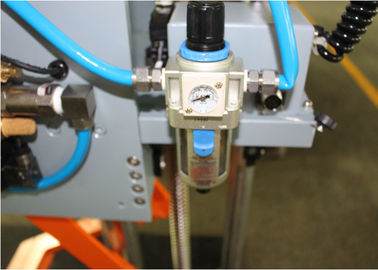

3 Precise guiding system and pneumatical driving;

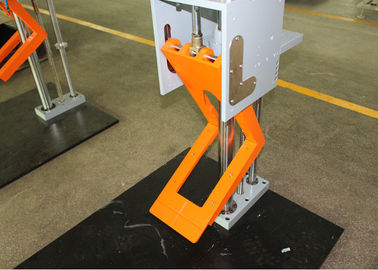

4 Unique swing arm structural design, escape acceleration of swing arm greater than 3G.;
5 With double column guide, hydraulic buffer will absorb the dynamic force of the swing arm, such that the movement is stable, reliable with low noise
6.Self-locking screw in lifting mechanism to prevent accidental downward glide.
7.Automatic pneumatic interlocks to prevent abnormal detachment of swing arm.
8.Extensible support bracket and steel base plate.
