Payload 85kg Lab Drop Tester Height 1.5 Meter For ISTA 1A 2A Standard

Large Image : Payload 85kg Lab Drop Tester Height 1.5 Meter For ISTA 1A 2A Standard

Product Details:

Place of Origin:	CHINA
Brand Name:	LABTONE
Certification:	CE ISO
Model Number:	DT150

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	international wooden case
Delivery Time:	15-20 days
Payment Terms:	T/T
Supply Ability:	50 Sets / Month

Contact Now

Payload 85kg Lab Drop Tester Height 1.5 Meter For ISTA 1A 2A Standard

Description

Drop Height:	300-2000mm	Specimen Weight:	85kg
Specimen Dimension:	800800800mm	Drop Mode:	Freedom
Machine Dimension:	170012002750mm	Machine Weight:	550kg
Warranty:	12 Months	Air Pressure:	0.5-0.7Mpa
Standard:	ISTA	Name:	Free Fall Drop Test Equipment With Drop Height 150cm Performs FedEx Packge Test
Highlight:	smartphone drop test , impact test equipment

Lab Drop Tester with Payload 85kg Drop Height 1.5 Meter for ISTA 1A 2A Standard

Packaging Drop Tester DT150 technical specificatio...

Product description

Packaging drop tester is used to measure the dropping impact incidence when the package in using, transportation and decorating.

Labtone "1G+" project strictly ensure the accuracy. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.

Specifications

Model	DT150	DT200
Drop height range (mm)	300-1500	300-2000
Specimen max.weight (kg)	85	85
Specimen max. size (mm)	800 x 800 x 800	800 x 800 x 800
Drop mode	Freedom
Machine Dimension (mm)	1500 x 1000 x 2150	1700 x 1200 x 2600
Machine weight (kg)	480	550
Power supply	AC220V 50Hz compressed air 0.5~0.7Mpa
Standards	ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27

Functions and Features

Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards.
Can perform surfaces, corner and edge drops.
Precise guiding system and pneumatical driving.
Unique swing arm structural design, escape acceleration of swing arm greater than 3G.;
With double column guide, hydraulic buffer will absorb the dynamic force of the swing arm, such that the movement is stable, reliable with low noise
Self-locking screw in lifting mechanism to prevent accidental downward glide.
Automatic pneumatic interlocks to prevent abnormal detachment of swing arm.
Extensible support bracket and steel base plate.

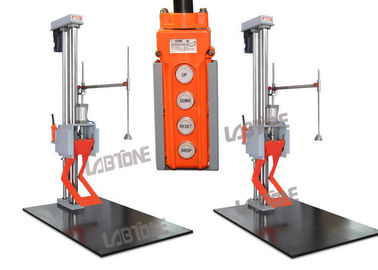

Payload 85kg Lab Drop Tester Height 1.5 Meter For ISTA 1A 2A Standard 0

Payload 85kg Lab Drop Tester Height 1.5 Meter For ISTA 1A 2A Standard 1

Packaging

Vacuum package with International plywood case

FAQ

1. Q: What is your warranty ?

12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.

2. Q: How-to vedio provided ?

Yes, if required, our engineers will record a specialize how-to video for you.

3. Q: Is the machine made in your own plant ?

Yes, welcome to visit our plant(factory), also we support OEM and ODM.

4. Q: What about the quality ?

Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
All of our machine are strictly according to CE & ISO standards.
