Product Details:
|
| Drop Height: | 300-1500mm | Package Weight: | 85kg |
|---|---|---|---|
| Package Size: | 800*800*800mm | Drop Mode: | Free Fall Drop |
| Machine Dimension: | 1500*1000*2150mm | Machine Weight: | 480kg |
| Warranty: | 12 Months | Power Supply: | AC220V 50Hz |
| Highlight: | package testing services,drop test equipment |
||

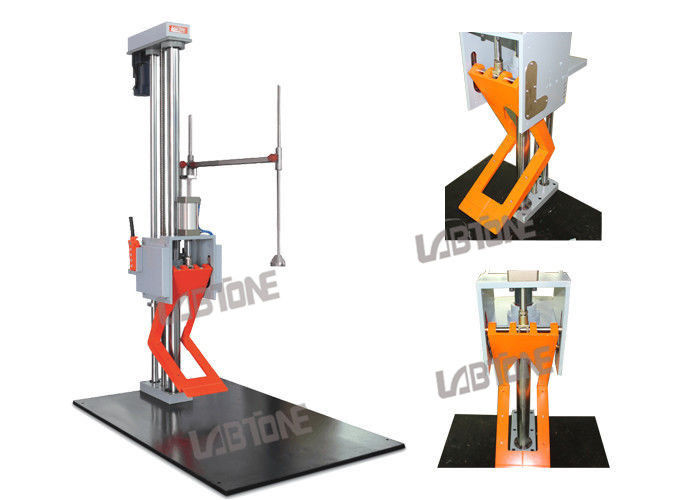

Free Fall Mode Package Drop Test Equipment With 12 Months Warranty
Packaging Drop Tester DT150 technical specificatio...
Drop Tester
Packaging drop test is used to determine the effect of impact on the package during use, transportation, loading and unloading. The strictly designed LABTONE “1G+” ensures its accuracy. Apart from accurate plane fall test, it can also perform edge drop and corner drop test to make a complete evaluation on the performance of packaging and product.
Specifications
| Model | DT150 | DT200 |
| Drop height range (mm) | 300-1500 | 300-2000 |
| Specimen max.weight (kg) | 85 | 85 |
| Specimen max. size (mm) | 800*800*800 | 800*800*800 |
| Drop mode | Freedom | |
| Machine Dimension (mm) | 1500*1000*2150 | 1700*1200*2600 |
| Machine weight (kg) | 480 | 550 |
| Power supply | AC220V 50Hz compressed air 0.5~0.7Mpa | |
| Standards | ISTA, ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27 | |
Features:
Model: DT150
Drop height range: 300 - 1500mm
Max. Load: 85Kg
Height display: standard scale

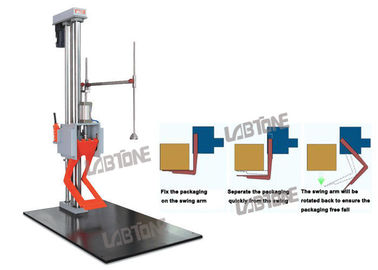

Machine type: test pieces supported by single bracket arm; pneumatic free drop
Control means: handle control
Drop mode: free drop
Height adjustment means: motor control and adjustment by precision screw
Dimension of specimen: 800 × 800 × 800 mm
Cushioning mechanism: hydraulic cushioning
Dimension of Machine (mm): 1500 (W) ×1850 (H) ×1000 (D)
Base plate dimensions (mm): 1500 (W) ×20 (H) × 1000 (D)
Power supply: 220V 50Hz
Air pressure requirement: 0.5~0.7Mpa
Equipment weight: about 480kg
1. Q: What is your warranty ?
2. Q: How-to vedio provided ?
3. Q: Is the machine made in your own plant ?
4. Q: What about the quality ?
Company Profile:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
