Product Details:
|
| Table Size: | 500*600 （mm） | Max. Specimen Weight: | 50 Kg |
|---|---|---|---|
| Max. Acceleration: | Half Sine: 600G | Machine Dimension: | 1150*1050*2450 (mm) |
| Controller: | SKC-2 | Waveform Generator: | Half Sine Wave/final Peak Saw Tooth Wave |
| Highlight: | mechanical shock test,shock test equipment |
||

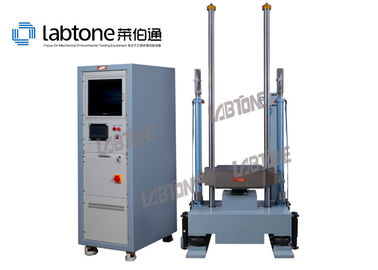

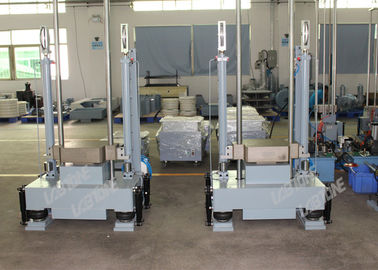

Shock Testing Systems Meet UN38.3 and IEC 62133 Perform 100g 6ms, 50g 11ms

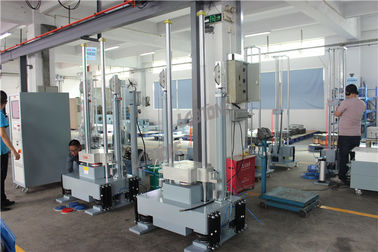

Shock Test Systems:
Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging. To do a boundary assessment on complete product breakage, industrial standard shock pulse or company’s internal standards, we can provide the most advanced shock test system to meet your application requirements.
Suitable shock tests for aviation, aerospace, marine, military, consumer electronics, automobiles, home appliances and display devices.
By selecting different waveform generators, it can perform half sinusoidal wave, sawtooth wave, or trapezoidal wave.
Main parameters:
| Operating platform | 500 × 600 mm |
| Max. load | 50 KG |
| Peak acceleration |
Half sine wave: 20 to 600G |
| Pulse duration |
Half sine wave: 1 to 30 ms |
| Acceleration allowance | ≤ 10% |
| Rate of speed change | ≤ 10% |
| Transverse ratio of table | ≤ 10% |
| Equipment dimensions | 1300×1150×2600 mm |
| Equipment weight | 2300 kg |
| Measuring system | |
| Input channels | 2 channels |
| Sampling frequency | 192KHz |
| Pulse duration | 0.5 to 100ms |
| Max. acceleration | 5000G |
| Communication interface | USB2.0 |
| Supportive standard | ISO, UN38.3,MIL-STD-810, user defined |
| Operating system | Windows 7/10 |
| System acceleration sensor | |
| Brand |
LAB |
| Model |
23108 |
| Output mode | Charge type |
| Sensitivity |
10pC/g |
| Frequency range | 0.5 to 12KHz |
| Acceleration range | ±2000G |
| Operating environment | -40 to +160℃ |
| Other information | |
| Power supply | AC, three phase, 380V±10% 5KVA |
| Compressed air | 0.5 to 0.8Mpa |
| Temperature | RT~40℃ |
| Humidity | 25℃, ＜ 85RH% |
| Safety |
Mean time between failure≥ 5000 hours; |
| Applicable standards | GB2423.5, GJB150.18, GJB360.23,UN38.3,IEC68-2-27, MIL—STD202F, MIL-STD810B, GB/T18287, etc. |
| Testing standard | JG541-2005 |
Schematic diagram :
Equipment configuration:
| No. | Equipment name | Model | Qty. |
| 1 | Shock test system | SKT50 | 1 set |
| 2 | Hydraulic lifting mechanism | 1 set | |
| 3 | Controller | SKC-2 | 1 set |
| 4 | Shock measurement device | 1 set | |
| 5 | Sensor | 1PCS | |
| 6 | Control computer | 1 set | |
| 7 | Waveform generator | Half sine wave/final peak saw tooth wave | 1 set |
| 8 | Safety device | Audible and visual alarm | 1 set |
| 9 | Attached accessories | Tools, clamps/instructions, installation disc, etc. | 1 set |
