2000kg Vibration Test Machine Meets IEC 60068-2-64 Standard For Electronics Test

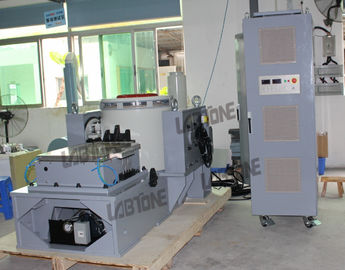

Large Image : 2000kg Vibration Test Machine Meets IEC 60068-2-64 Standard For Electronics Test

Product Details:

Place of Origin:	Dongguang, China
Brand Name:	LABTONE
Certification:	CE / ISO
Model Number:	EV220

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Plywood Case with Vacuum Packing
Delivery Time:	45 Working Days
Payment Terms:	T/T, L/C
Supply Ability:	15 Sets / Month

Contact Now

2000kg Vibration Test Machine Meets IEC 60068-2-64 Standard For Electronics Test

Description

Max. Force:	20 KN (2000kg)	Frequency Range:	1-3000 Hz
Continuous Displacement:	50 Mm	Max Velocity:	200 Cm/s
Axial Direction:	Vertical And Horizontal	Power Supply:	AC 380V 50Hz
Highlight:	vibration testing equipment , vibration testing services

2000kg Vibration Test Machine Meets IEC 60068-2-64 Standard For Electronics Test

EV series of electromagnetic vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.

Technical Specifications: EV220

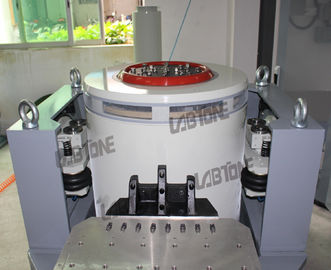

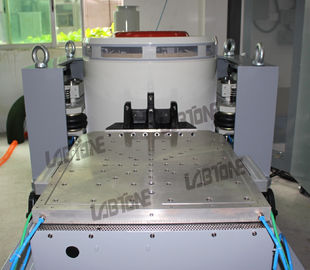

VG2000-50 Electro-dynamic Vibration Shaker
Max. Sine force		2000Kg.f peak
Max. Random force		2000Kg.f r.ms
Max. Shock force		4000Kg.f peak
Frequency range		1 - 3000 Hz
Max. displacement		51 mm p-p
Max. speed		2m/s
Max. acceleration		100G (980 m/s²⁾
Max. load (sine) F=M.A
5G (49 m/s²⁾	10G (98 m/s²⁾		20G (196 m/s²⁾	30G (294 m/s²⁾
378kg	178kg		78kg	44kg
First-order resonance frequency		3200 Hz±5%
Effective load		300 kg
Vibration isolation frequency		2.5 Hz
Diameter of armature		Ф320 mm
Mass of armature		22 kg
Table screw		16×M10
Flux leakage		＜10gauss
Allowable eccentric moment		300N.m
Shaker dimensions		1200 × 870 ×1100 mm
Shaker weight		About 1600Kg
Amp-22K digital switch power amplifier
Output power		22KVA
Output voltage		100V
Output current		200A
Amplifier efficiency		≥90%
Switching frequency		116KHz
Signal to noise ratio		≥65dB
Noise		≤70dB
Amplifier dimension		880 × 580 ×1520 mm

Meet International Standards:

MIL-STD-810G, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.

Main Applications:

Automotive parts and systems - qualification testing
Electronic assembly, computer equipment testing
Avionics and military hardware testing
Satellite component testing
Product and package testing
General stress screening

Customer Services

Presales:

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales:

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).

After-Sales:

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

Technical support: special paid services are provided according to customer’s needs.
