Product Details:
|
| Max. Force: | 20 KN (2000kg) | Direction: | XYZ Axis |
|---|---|---|---|
| Amplitude: | 76.2 Mm | Fixture: | Available |
| Software: | Sine, Random, Shock, RSTD | Power Supply: | AC 380V 50Hz |
| Highlight: | vibration testing services,vibration shaker system |
||

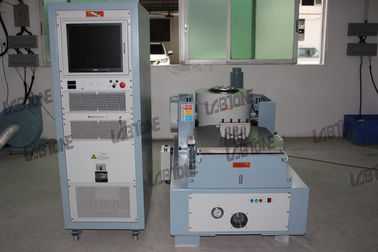

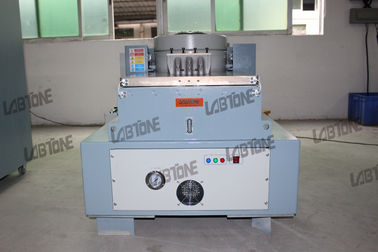

Sine Random Electrodynamic Vibration Shaker For Battery Pack Reliability Test with 3 inch Stroke
Technical Specifications:
| Model | EV320 | EV330 |
| Vibration Generator | VG2200/76 | VG3200/76 |
| Frequency(Hz) | 1-3000 | 1-2700 |
| Max Exiting Force(kg.f) | 2200 | 3200 |
| Max. Displacement (mmp-p) | 76.2 | 76.2 |
| Max. Acceleration(g) | 80 | 85 |
| Max. Velocity(cm/s) | 200 | 200 |
| Payload(kg) | 300 | 400 |
| Armature Mass(kg) | 25 | 35 |
| Armature Diameter(mm) | φ320 | φ320 |
| Cooling Method | Forced Air Cooling | |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |
| Aggregate Capacity(KW) | 40 | 56 |
Meet International Standards:
MIL-STD-810G, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Horizontal oil film slip table
The horizontal slip table is designed to have high tilting moment and lateral restriction. This design concept is combined with standard horizontal slip table to enable high dynamic moment limit and keep guide oil film damping feature. The horizontal slip table is composed of a slipper, a connector, a natural granite slab, horizontal slip table base and an independent oil source.
