Product Details:
|
| Max. Sine Force: | 1000 Kg.f | Vibration Controller: | 2 Channel Input, 1 Chanel Output |
|---|---|---|---|
| Shaker Dimension: | 845 X 685 X 845 Mm | Payload: | 200 Kg |
| Armature Mass: | 10 Kg | Power Supply: | AC 380V 50Hz |
| Highlight: | vibration table testing equipment,industrial shaker table |
||
Vibration Testing Machine , Vibration Test Shaker For ISTA Packaging Test
600kg.f Vibration Test System -Technical Specifica...
Vibration Test Systems
EV series of electromagnetic vibration testing system is specially designed to meet the need for long time operation. Vertical and horizontal vibrations can be achieved by the installation of vibration resistant base. The standard platform is equipped with high efficiency airbag shock isolation device, so that the vibration transmitted to the building can be minimized. There is no need for additional foundation in most of the cases.
Specifications: EV203-EV220
| Model | EV203 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/40 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency Range (Hz) | 1-2500 | 1-3000 | 1-3000 | 1-3000 |
|
Max Exiting Force (kg.f) |
300 | 600 | 1000 | 2000 |
|
Max. Displacement (mmp-p) |
38 | 50.8 | 50.8 | 50.8 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 120 | 200 | 200 | 200 |
| Payload(kg) | 120 | 200 | 200 | 300 |
| Armature Mass(kg) | 3 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling | |||
| Vibration Generator Weight(kg) | 460 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*555*670 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling | |||
| Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||
| Aggregate Capacity(KW) | 9 | 20 | 25 | 35 |
Introduction to Equipment Performance
Armature
Vibration table is provided with cast and manually processed armature, photoelectric pneumatic load support system and dual-bearing axial guide. The dual-bearing guide has a special function. It has excellent durability and can reduce axial dynamic crossing and rotation in vibration test process.
Excitation coil
It is of double magnetic circuit structure with low flux leakage and uniform magnetic field.
Shaker surface
Advanced phosphating and automotive paint technologies are applied for the surface to resist wear and rusting for long time.
Shaker cooling
Intake air structure with low noise blower and improved table is applied, the excitation coil is of cellular duct, middle magnetic loop is of double-layer split duct, so new duct design is applied to enhance cooling effect.
Service commitment and support:
| Pre-sales service | Technical Advisory; |
| Equipment Selection; | |
| Product testing scheme. | |
| In-sales service | Close and effective communication with clients; |
| Timely and effectively solve the related issues. | |
| After-sales service | One year warranty. |
| Equipment installation and debugging. | |
| Technical training. | |
| Respond within 12-24 hours of receiving feedback. | |
| Others | Maintenance, modification and upgrade for the machine. |
| Design and producing for special fixtures and table. |

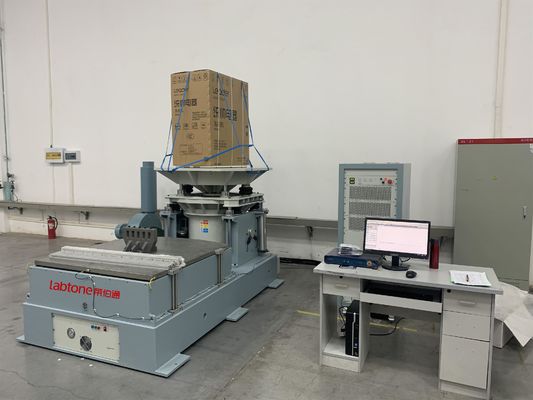

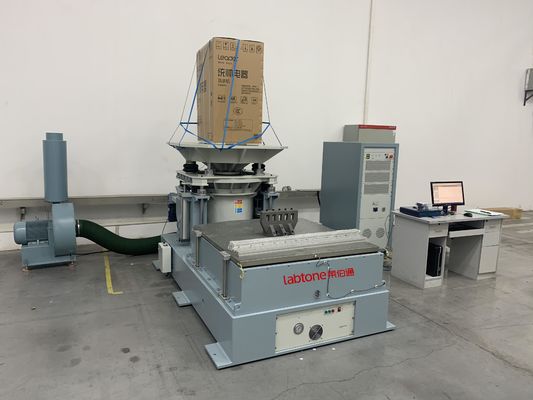

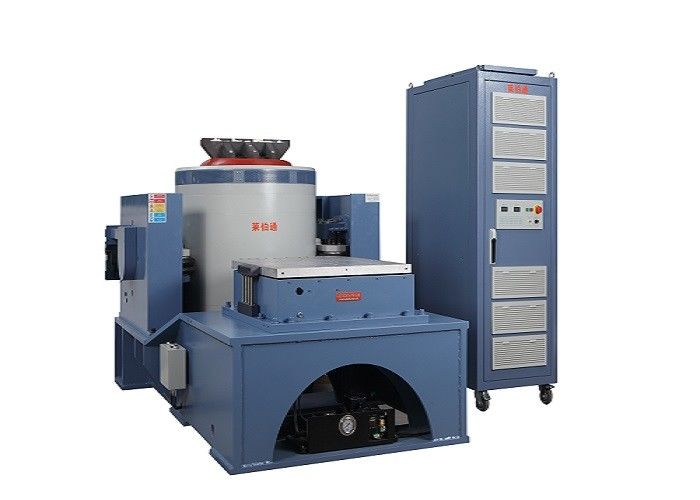

Detailed Pictures:
