Product Details:
|
| Model: | HSKT10 | Table Size: | 200 X 250 Mm |
|---|---|---|---|
| Specimen Max Weight: | 10 Kg | Shock Pulse: | Half Sine Wave |
| Acceleration Range: | 20-2000 G | Pulse Duration Range: | 0.2~18 Ms |
| Highlight: | shock and drop testing,mechanical testing equipment |
||

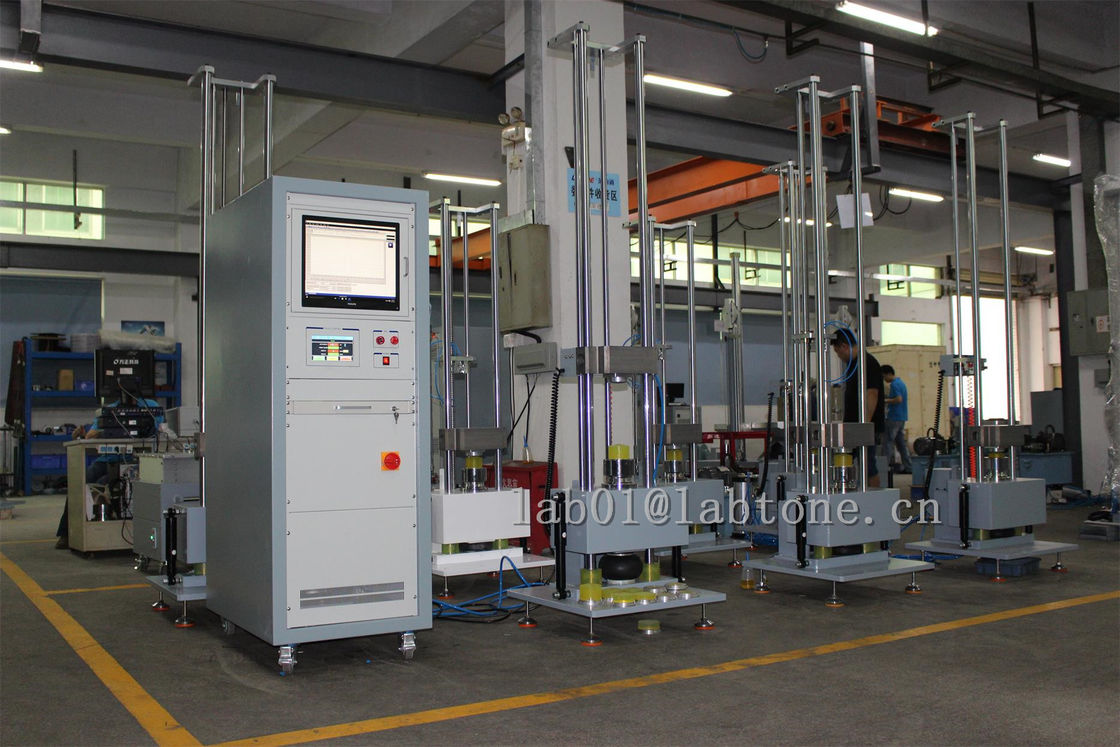

Laboratory Mechanical Shock Test Equipment Electronics and Connectors Shock Test
High Speed Shock Test Systems were developed to achieve the most demanding defense, aerospace, and electronics shock testing specifications. These highly specialized shock systems can generate incredible impact velocities.
Technical Specifications
| Model | HSKT10 | HSKT30 |
| Table size (mm) | 200x250 | 300x300 |
| Shock pulse | Half sine | |
| Maximum Specimen Weight(Kg) | 10 | 30 |
| Acceleration Range(G) | 20 ~ 2000 | 20 ~ 1500 |
| Pulse Duration (ms) | 0.2~18 | 0.5~30 |
| Machine Dimension(mm) | 660x700x2380 | 720x680x1890 |
| Utility Requirements |
AC220V 50Hz 5A,Air pressure: more than 0.5Mpa | |
| Machine Weight(Kg) | 820 | 650 |
Features
Warranty:
One year limited warranty with lifetime support; extended warranty available upon request at additional cost.
After-sale service:
On site installation and trainning are avaiable at extra cost.
Technical support
Certificate: China official third-party calibration report / CE Certification
Customer Service
Service timeliness
When a fault report is received from customer〈including telephone, fax and email〉:
LABTONE will respond within 4-8 hours (working time), provide solutions and eliminate faults within 12-24 hours. After the equipment's guarantee period ended, supplier still has obligation to provide users with technical supports and after-sales services.
Presales:
In-Sales:
After-Sales:
Production:
