Product Details:
|
| Drop Height: | 300-1500mm | Specimen Weight: | 80kg |
|---|---|---|---|
| Specimen Dimension: | 800*800*800mm | Drop Mode: | Freedom |
| Machine Dimension: | 1700*1200*2150mm | Machine Weight: | 450kg |
| Warranty: | 12 Months | Air Pressure: | 0.5-0.7Mpa |
| Standard: | ISTA | Name: | CE Marked Free Fall Lab Drop Tester: 1500mm Height For ISTA 80 Kg Package Test |
| Highlight: | smartphone drop test,impact test equipment |
||

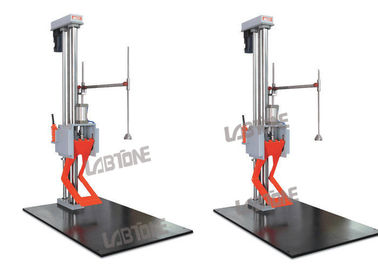

Packaging drop tester is used to measure the dropping impact incidence when the package in using, transportation and decorating.
Labtone "1G+" project strictly ensure the accuracy. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
Specifications
| Model | DT150 | DT200 |
| Drop height range (mm) | 300---1500 | 300----2000 |
| Specimen max.weight (kg) | 85 | 85 |
| Specimen max. size (mm) | 800*800*800 | 800*800*800 |
| Drop mode | Freedom | |
| Machine Dimension (mm) | 1500*1000*2150 | 1700*1200*2750 |
| Machine weight (kg) | 480 | 550 |
| Power supply | AC220V 50Hz compressed air 0.5~0.7Mpa | |
| Standards | ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27 |
|
Functions and Features
1 Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards.
2 Can perform surfaces, corner and edge drops.
3 Precise guiding system and pneumatical driving;
4 Unique swing arm structural design, escape acceleration of swing arm greater than 3G.;
5 With double column guide, hydraulic buffer will absorb the dynamic force of the swing arm, such that the movement is stable, reliable with low noise
6.Self-locking screw in lifting mechanism to prevent accidental downward glide.
7.Automatic pneumatic interlocks to prevent abnormal detachment of swing arm.
8.Extensible support bracket and steel base plate.
High Accuracy Drop Tester for Packaged Freight specifications
| Model | DT150 | DT200 |
| Drop height range (mm) | 300---1500 | 300----2000 |
| Specimen max.weight (kg) | 85 | 85 |
| Specimen max. size (mm) | 800*800*800 | 800*800*800 |
| Drop mode | Freedom | |
| Machine Dimension (mm) | 1500*1000*2150 | 1700*1200*2750 |
| Machine weight (kg) | 480 | 550 |
| Power supply | AC220V 50Hz compressed air 0.5~0.7Mpa | |
| Standards | ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27 | |
1. Q: What is your warranty ?
2. Q: How-to vedio provided ?
3. Q: Is the machine made in your own plant ?
4. Q: What about the quality ?
