2-5Hz Mechanical Shaker Table for 100kg Payload Package Transportation Simulation

Large Image : 2-5Hz Mechanical Shaker Table for 100kg Payload Package Transportation Simulation

Product Details:

Place of Origin:	CHINA
Brand Name:	LABTONE
Certification:	CE, ISO
Model Number:	YST100

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	International Plywood Case
Delivery Time:	30 Days
Payment Terms:	T/T, L/C
Supply Ability:	15 Sets / Month

Contact Now

2-5Hz Mechanical Shaker Table for 100kg Payload Package Transportation Simulation

Description

Payload:	100 Kg	Table Size:	1000 X 1200
Adjustable Frequency:	2~5Hz(120~300)RPM	Fixed Amplitude:	1 In (25.4MM)
Vibration Pattern:	Rotation, 30° Unbalance Vibration(asynchronous)	Power Supply:	AC 380V±10% 50/60Hz
Name:	2-5Hz Mechanical Shaker Table For 100kg Payload Package Transportation Simulation
Highlight:	vibration shaker table systems , mechanical vibration testing

2-5Hz Mechanical Shaker Table for 100kg Payload Package Transportation Simulation

General Introduction

Transportation Simulator is used in the laboratory to simulate the truck transportation situation on different road conditions. The purpose is to inspect and estimate the performance of packaging in such conditions.

Mechanical Shaker Specifications

Model	YST100	YST200	YST500	YST1000	YST2000
Max Payload(kg)	100	200	500	1000	2000
Table Size(mm)	1000x1200	1200x1200	1200x1500	1500x1500	1500x1500
Frequency Range	2~5Hz(120~300)RPM
Displacement	25.4mm Fixed
Test Motions	Rotary (Synchronous)
Power Supply	AC220V±10% 50Hz		3-phase 380V±10% 50Hz

Features

Precise digital display for the vibration frequency
Synchronous low noise wide belt drive mechanism
Guide Rail type fixture for specimen, easy to operate
Heavy channel iron base equipped with damper rubber makes the machine easy to install, having large loading capacity, ensuring stable running.
Rotational Vibration method complies with the international test standard
Suitable for toys, electronics, furniture, gifts, porcelain, packaging industries for packaging transportation simulation test.

Company profile:

Labtone Test Equipment Co., Ltd. is a +16 year China manufacture of reliable, cost-effective equipment. Our superior products mainly include Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.

Labtone started a business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument, and industrial machinery applications. Our experience and commitment to new product development have resulted in products that are easy to use, accurate and designed for decades of service.

Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literature, manuals, and guides as well as having qualified staff and experts to solve your problems.

We sincerely invite you to visit our factory.

Services:

Presales

Technical consultation: test method, laboratory planning, and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).

After-Sales

Technical training: operation of equipment, daily maintenance, common fault diagnosis, and troubleshooting.

Scheduled on-site service: Detection of the problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of the latest technical information.

Technical support: special paid services are provided according to the customer’s needs.

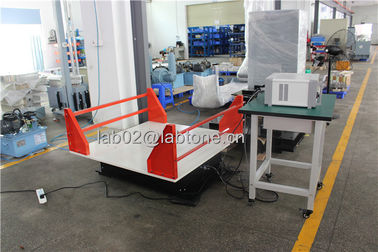

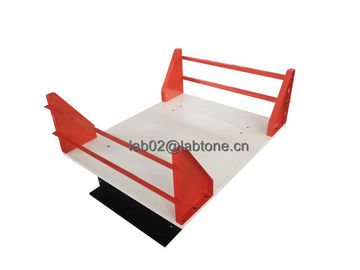

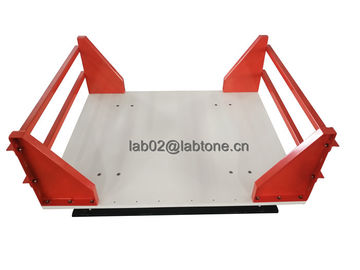

Detailed pictures

2-5Hz Mechanical Shaker Table for 100kg Payload Package Transportation Simulation 0

2-5Hz Mechanical Shaker Table for 100kg Payload Package Transportation Simulation 1
