Product Details:
|
| Shock Waveform: | Half-sine | Table Size: | 300 X 300 Mm |
|---|---|---|---|
| Specimen Max Weight: | 30 Kg | Shock Controller: | SKC-2 |
| Acceleration: | Up To 35000 G | Power Supply: | AC380V 50Hz |
| Highlight: | mechanical testing equipment,vibration and shock testing |
||

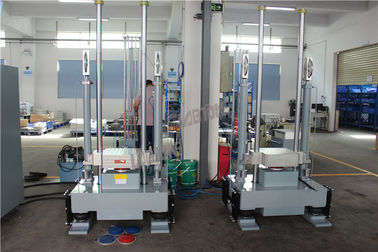

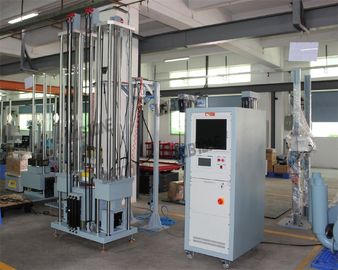

35000g High Speed Shock Test Machine Table Size 300*300mm Meet Industry Test Spec
Introduction to Equipment Performance
a Working platform (Table)
High strength imported aluminum alloy working platform.
b lifting mechanism
PLC control servo motor drive ball screw to raise working platform.
c Lifting height control
The height of lifting is measured by the photoelectric encoder module installed on the base.The photoelectric encoder measurement has high precision, strong anti-interference ability and high reliability, which ensures the repeatability of impact
d Brake System
Adopt the gas-liquid supercharged brake force friction lock to prevent the secondary backlash.
e Buffer System
Effectively reduce the impact on the ground. The self - cushioning system is designed with base, damper and air bag.
f Waveform Generator
Half sine waveform generator: Wool felt, polyurethane, ect.
Technical Parameters:
| Main parameters of the shock tester | |
| Operating platform | 300 × 300 mm |
| Max. load | 30 KG |
| Peak acceleration | 200-100000m/s2 (20-10000G) |
| Pulse duration | 1~11 ms (Half sine wave) |
| Equipment dimensions | 1300×1220×3380 mm |
| Equipment weight | 1950 kg |
| Power & Air supply | 3phase 380V±10％ 50Hz,5KVA & 0.5—0.7MPa |
| Dual Mass Shock Amplifier | |
| Table size | 150 x 150 mm |
| Max. load | 3kg |
| Peak acceleration | 35000G |
| Pulse duration | 0.1—0.5ms |
| Measuring system | |
| Input channels | 4 channels |
| Sampling frequency | 1MHz |
| Input mode | Support voltage, IEPE, input directly. |
| Coupled mode | AC, ICP |
| ADC resolution | 16 bits |
| Dynamic range | 80dB |
| harmonic distortion | <-70dB |
| Signal to Noise Ratio | >70dB |
| Pulse duration | Narrow -0.1ms |
| Acceleration range | Up to 100,000gn |
| Frequency accuracy | 0.01% |
| Voltage range | -10Vpeak--+10Vpeak |
| Supportive standard | GB, GJB, MIL-STD, ISO, IEC, user defined |
| Shock waveform | Half-sine |
| Communication interface | USB2.0 |
| Operating system | Win7/10 |
| System accelerometer | |
| Brand | DYTRAN (USA) |
| Type 1 | Measuring and analyzing three axial acceleration sensors |
| Model | 3133A5 |
| Output mode | IEPE type |
| Sensitivity | 0.25mv/g ± 25% |
| Frequency range | 0.25---10KHz ±10% |
| Acceleration range | 20000G (40000G MAX) |
| Operating environment | -55 to +160℃ |
| Type 2 | Shock acceleration sensors |
| Model | 3200B2T |
| Output mode | IEPE type |
| Sensitivity | 0.05 mV/g±25% |
| Frequency range | 0.5 to 20K Hz frequency range (±10%) |
| Acceleration range | 50000G |
| Operating environment | -51 to +121℃ |
Warranty: within 12 months after customer receive the goods, lifelong time maintainance.
After-sale service: feedback within 4-8 hours after get the call or email.
Service: OEM, ODM
Certificate: China official third-party calibration report / CE Certification
