Product Details:
|
| Model: | HSKT10 | Table Size: | 200 X 250 Mm |
|---|---|---|---|
| Payload: | 10 Kg | Waveform Generator: | Half Sine (1set) |
| Lead Time: | 35 Working Days | Sensor: | LAB |
| Highlight: | mechanical testing equipment,vibration and shock testing |
||

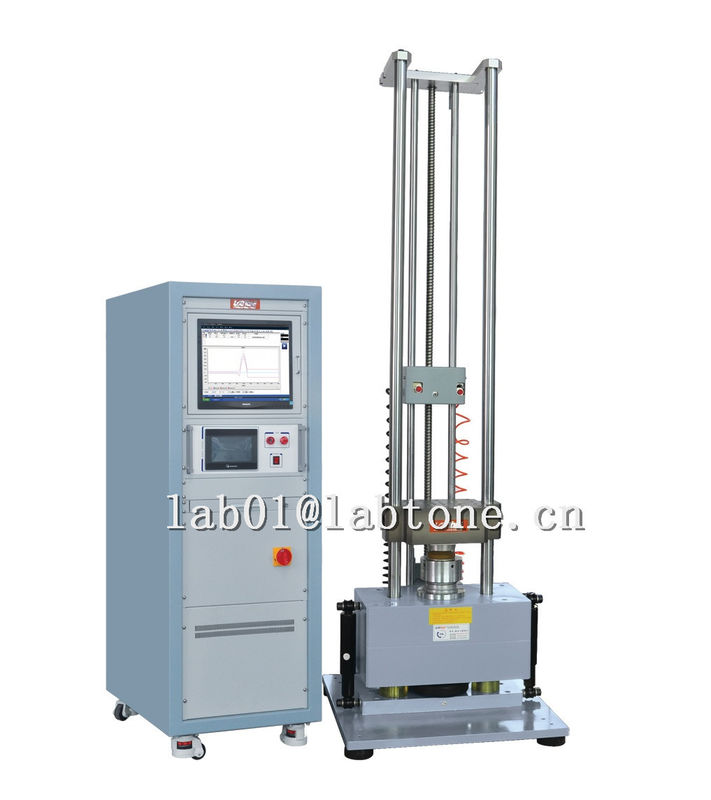

Computer Control Mechanical Shock Testing Machine With Controller and Software
The HSKT series shock test system is mainly applicable to shock resistance tests in such fields as electronic products, battery products, aerospace, military industry, automotive parts and transportation. Shock tests are in form of half sine wave, saw tooth wave or trapezoidal wave. Shock tests can be carried out by selecting different waveform generators.
Labtone provides shock testing equipment ranging in both size and performance capability. To help guide interested customers, we’ve put together a list of key considerations that help select the most appropriate shock test system.
Technical Specifications
| Model | HSKT10 | HSKT30 |
| Table size (mm) | 200x250 | 300x300 |
| Shock pulse | Half sine | |
| Maximum Specimen Weight(Kg) | 10 | 30 |
| Acceleration Range(G) | 20 ~ 2000 | 20 ~ 1500 |
| Pulse Duration (ms) | 0.2~18 | 0.5~30 |
| Machine Dimension(mm) | 660x700x2380 | 720x680x1890 |
| Utility Requirements |
AC220V 50Hz 5A,Air pressure: more than 0.5Mpa | |
| Machine Weight(Kg) | 820 | 650 |
Equipment composition
| No. | Equipment name | Model | Qty. |
| 1 | Shock tester table | HSKT10 | 1set |
| 3 | Controller | SKC-1 | 1 set |
| 4 | Shock measuring and analyzing system | ST-2 | 1 set |
| 5 | Sensor | LAB | 1pcs |
| 6 | Control computer | 1 set | |
| 7 | Waveform generator | HB01 | 1 set |
| 8 | Safety device | Audible and visual alarm | 1 set |
| 9 | Attached accessories | Tools, clamps/instructions, installation disc, etc. | 1 set |
Features
Warranty:
One year limited warranty with lifetime support; extended warranty available upon request at additional cost.
After-sale service:
On site installation and trainning are avaiable at extra cost.
Technical support
Certificate: China official third-party calibration report / CE Certification
Customer Service
Service timeliness
When a fault report is received from customer〈including telephone, fax and email〉:
LABTONE will respond within 4-8 hours (working time), provide solutions and eliminate faults within 12-24 hours. After the equipment's guarantee period ended, supplier still has obligation to provide users with technical supports and after-sales services.
Presales:
In-Sales:
After-Sales:
Customer Lab:
