Random Vibration Testing Equipment For Secondary Lithium-Ion Cells IEC62660-2

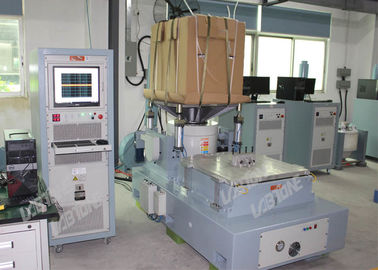

Large Image : Random Vibration Testing Equipment For Secondary Lithium-Ion Cells IEC62660-2

Product Details:

Place of Origin:	Dongguang, China
Brand Name:	LABTONE
Certification:	CE / ISO
Model Number:	EV420

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Plywood Case with Vacuum Packing
Delivery Time:	45 Working Days
Payment Terms:	T/T, L/C
Supply Ability:	15 Sets / Month

Contact Now

Random Vibration Testing Equipment For Secondary Lithium-Ion Cells IEC62660-2

Description

Frequency Range:	1-3000 Hz	Since Force:	2000 Kg.f
Displacement:	100 Mm	Shaker Weight:	1700 Kg
Software:	Sine, Random, Shock	Power Supply:	AC 380V 50Hz
Highlight:	packaging testing equipments , vibration lab equipment

Random Vibration Testing Equipment For Secondary Lithium-Ion Cells IEC62660-2

Introduction:

Electrodynamic vibration test system for evaluating industrial products against vibrations. This system consists of a vibration generator, a power amplifier, and a vibration control system. It can provide a vibration test to cope with various loads such as sine vibration, random vibration, mechanical shock pulse and replication of real-time trace.

Technical Specifications:

VG3200-100 Electro-dynamic Vibration Shaker
Max. Sine force		2000Kg.f peak
Max. Random force		2000Kg.f rms
Max. Shock force		4000Kg.f peak
Frequency range		1 - 3000 Hz
Max. displacement		100 mm p-p
Max. speed		2m / s
Max. acceleration		100G (980 m/s²⁾
First-order resonance frequency		3200 Hz±5%
Effective load		300 kg
Vibration isolation frequency		2.5 Hz
Diameter of armature		Ф320 mm
Mass of armature		30kg
Table screw		16×M10
Flux leakage		＜10gauss
Allowable eccentric moment		300N.m
Shaker dimensions		1200 × 870 ×1130 mm
Shaker weight		About 1700Kg

Meet International Standards:

MIL-STD-810G, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.

Main Applications:

Automotive parts and systems - qualification testing
Electronic assembly, computer equipment testing
Avionics and military hardware testing
Satellite component testing
Product and package testing
General stress screening

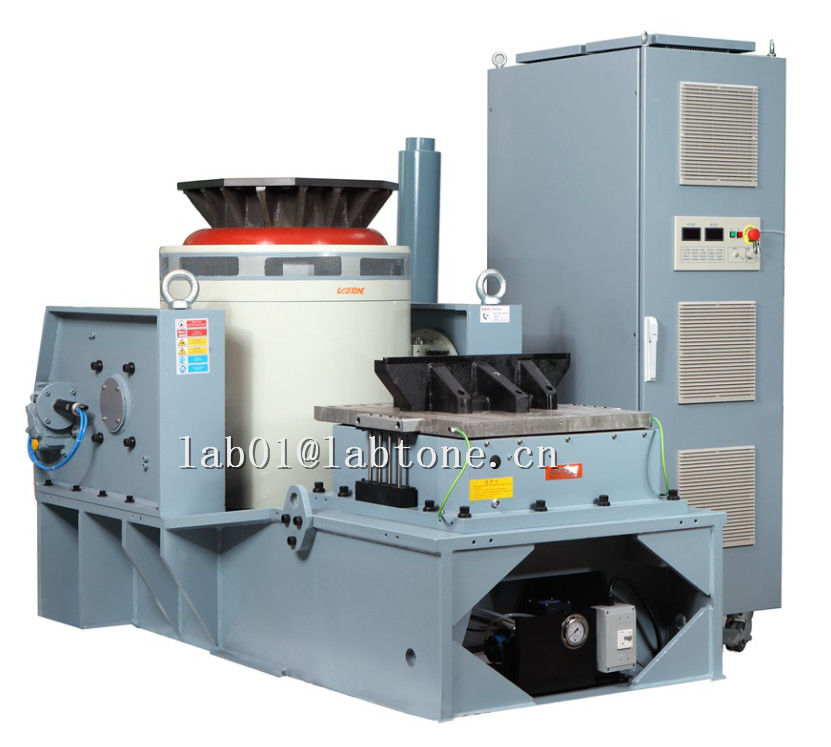

Horizontal oil film slip table

The horizontal slip table is designed to have high tilting moment and lateral restriction. This design concept is combined with standard horizontal slip table to enable high dynamic moment limit and keep guide oil film damping feature. The horizontal slip table is composed of a slipper, a connector, a natural granite slab, horizontal slip table base and an independent oil source.

Random Vibration Testing Equipment For Secondary Lithium-Ion Cells IEC62660-2 0

Customer Services

Presales:

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales:

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).

After-Sales:

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

Technical support: special paid services are provided according to customer’s needs.

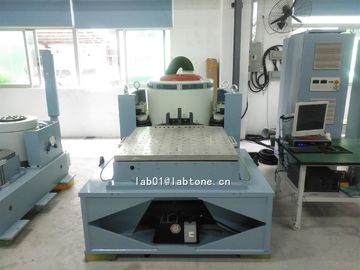

Random Vibration Testing Equipment For Secondary Lithium-Ion Cells IEC62660-2 1
