Product Details:
|
| Sine Force Peak: | 40 KN (4000 Kg.f) | Max Acceleration: | 100g |
|---|---|---|---|
| Max Velocity: | 2.0 Cm/s | Frequency Range: | 2-2500 Hz |
| Max Displacement: | 100 Mm | Power Supply: | 3-phase AC 380V / 50Hz |
| Max. Payload: | 500kg | VIbration Controller: | Random, Swept Sine, Classical Shock |
| Name: | 40KN Shaker Table Vibration With Static Load 500kg For Vibrating Axis Vertical And Horizontal | ||
| Highlight: | electrodynamic vibration shaker system,vibration testing equipment |
||
The specimen fixation is selected based on the upper limit of test frequency and specimen size, either vertical expansion platform or horizontal slip table. Specimen mass is needed to evaluate the required exciting force for vibration test.
When evaluating the exciting force needed for vibration test, you can choose a temporary armature mass (according to the model of EV series)
A Vibration Test System consists of four major components (shown in Figure A-1):
1. The Shaker
2. The Power Amplifier
3. The Cooling Blower
4. The Shaker Control System( Included Accelerometers and Cables)
5. Head Expander
| EV440.HG100M. VT100CM Electrodynamic Shaker System | ||
| A30F44 Shaker | ||
|
Generated Force |
Sine (Pk) | 4000 kgf |
| Random (Rms) | 4000 kgf @ISO5344 | |
| Shock (Pk) | 12000 kgf @ 6ms | |
| Useable Frequency (Only Armature) | DC-3,000Hz | |
| Maximum displacement (Peak-Peak): Continuous duty/Shock | 80mm/ 100 mm | |
| Maximum Velocity | 2.0 m/s | |
| Maximum Acceleration | 100 g | |
| Nominal armature moment | 500 Nm | |
| Armature Diameter | 440 mm | |
| Vertical Load Support | 500 kg | |
| Load Attachment Points (Standard) | 16 stainless steel M10 Inserts | |
| LA50KPower Amplifier | ||
| Rated Output Capacity | 50kVA(110V/380A) | |
| Input Power |
380VAC, 50 Hz, 3 Phase 56kVA Not Included 20kVA cooling blower |
|
| B153S Blower | ||
| Blower Power | 15 kW | |
| Head Expanded VT100CM (Magnesium) | ||
| Maximum Useable Frequency | ~1000 Hz | |
| Mass of HE/ Armature (kg) | 170kg (135+35) | |
| Head Expander working size | 1000mm✘1000mm | |
Customer Service:
Warranty: 12 months from delivery, lifelong time maintenance.
After-sale service: feedback within 4-8 hours after getting the call or email.
Service: OEM, ODM
Certificate: China official third-party calibration report / CE Certification
Welcome to contact us with your vibration test inquiry.

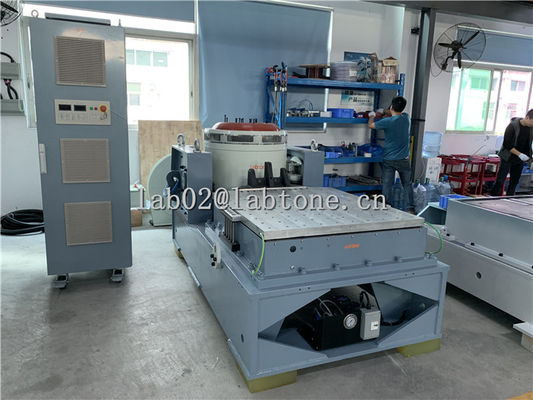

Reference picture:
