Product Details:
|
| Payload: | 200kg | Displacement: | Fixed 1 Inch (25.4 Mm) |
|---|---|---|---|
| Frequency: | 2~5Hz(120~300)RPM | Meet Standards: | ISTA 1A 2A |
| Vibration Pattern: | Rotary | Power Supply: | AC 220V±10% 50Hz |
| Usage: | Vibration Test Machine, Mechanical Vibration Table | Warranty: | 12 Months |
| Highlight: | ISTA 1A 2A Vibration Test Machine,Rotary Vibration Test Machine,200kg Payload Vibration Test Equipment |
||

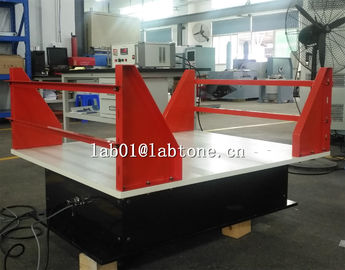

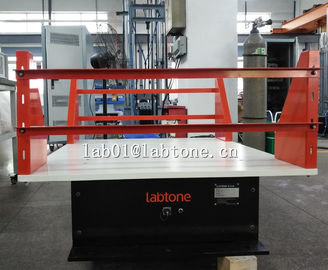

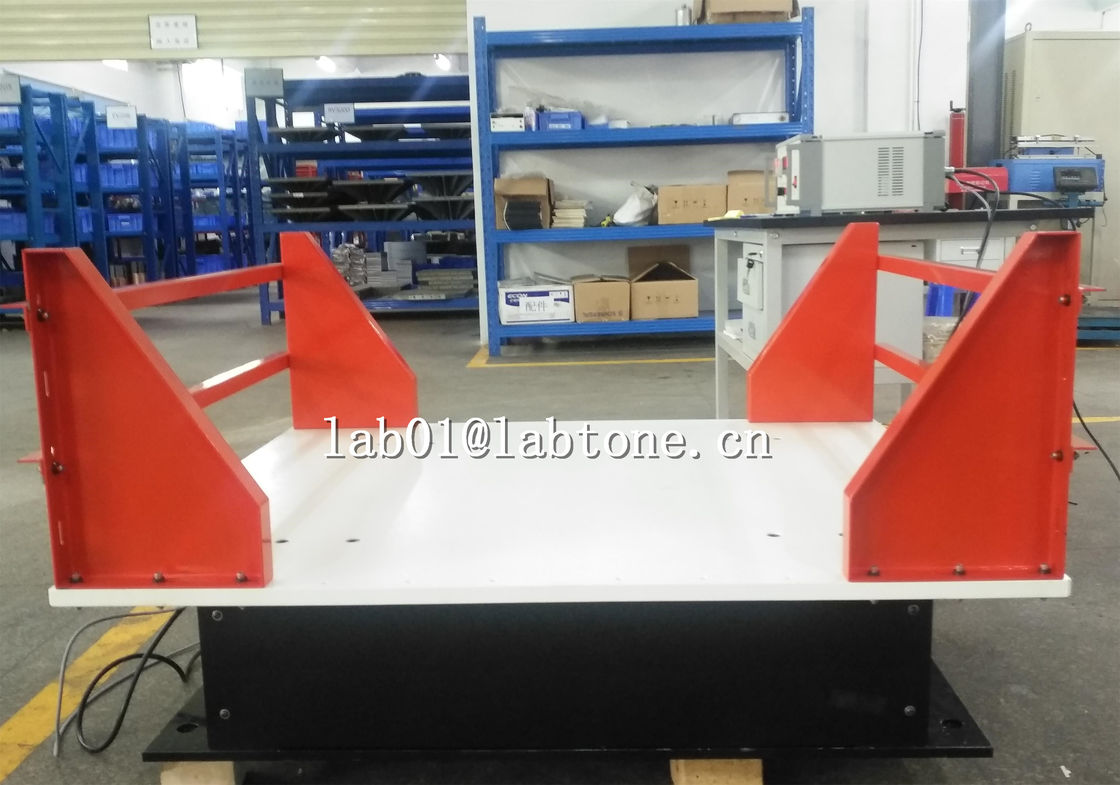

Rotary Vibration Test Machine with Fixed Displacement 1 inch Meet ISTA1A 2A
Transportation Simulation Tester is mainly used in repeating impact, unloading or jump test that comply to ISTA, ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm) and maximum acceleration of 1.25 G.
YST series vibration platforms adopts eccentric cam principle to achieve rotation (synchronous) vibration mode.
Specifications
| Model | YST100 | YST200 | YST500 | YST1000 | YST2000 |
|
Max Payload(kg) |
100 | 200 | 500 | 1000 | 2000 |
|
Table Size(mm) |
1000x1200 | 1200x1200 | 1200x1500 | 1500x1500 | 1500x1500 |
| Frequency Range | 2~5Hz(120~300)RPM | ||||
| Displacement | 25.4mm Fixed | ||||
| Test Motions | Rotary (Synchronous) | ||||
| Power Supply | AC220V±10% 50Hz | 3-phase 380V±10% 50Hz | |||
Features
Meet Test Standard
Customer Services:
Presales
In-Sales
After-Sales
Company Profile
Labtone Test Equipment Co., Ltd. is a +16 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.
Detailed Pictures:
