Product Details:
|
| Model: | SKT200 | Table Size: | 1000 X 1000mm |
|---|---|---|---|
| Specimen Max Weight: | 200kg | Shock Pulse: | Half Sine, Square, Sawtooth |
| Max. Acceleration (G): | 600 | Pulse Duration Range (ms): | 1~30 |
| Highlight: | AC380V Mechanical Shock Tester,Sawtooth Wave Mechanical Shock Tester,Sawtooth Wave Mechanical Shock Test Equipment |
||
Half Sine Mechanical Shock Tester Meet IEC 60068-2-27 For Battery And Other Componen
Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging. To do a boundary assessment on complete product breakage, industrial standard shock pulse or company’s internal standards, we can provide the most advanced shock test system to meet your application requirements.
Suitable shock tests for aviation, aerospace, marine, military, consumer electronics, automobiles, home appliances and display devices.
By selecting different waveform generators, it can perform half sinusoidal wave, sawtooth wave, or trapezoidal wave.
Peak acceleration and pulse duration table
| Acceleration (g) | 5 | 15 | 30 | 50 | 50 | 50 | 100 | 200 | 200 | 500 |
| Pulse duration (ms) | 30 | 11 | 18 | 6 | 11 | 3 | 6 | 6 | 3 | 1 |
Shock Test Machine Technical Specifications
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT1000 | SKT1500 | |
| Table size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | |
| Maximum Specimen Weight(Kg) | 50 | 100 | 200 | 300 | 500 | 1000 | 1500 | |
| Max acceleration(G) | half sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 |
| saw-tooth waveform | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| square | 100 | 100 | 100 | 60 | 50 | 50 | 50 | |
| Pulse Duration (ms) | half sine | 30~1 | 30~2 | 30~2 | 20~3 | 20~3 | 20~3 | 20~3 |
| saw-tooth waveform | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
| square | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | |
| Machine Dimension(cm) | 82x90x195 | 120x105x245 | 130x120x260 | 150x130x260 | 200x160x300 | 230x180x310 | 250x250x310 | |
| Controller cabinet Dimension(cm) | W55 x D50 x H80 | |||||||
| Machine Weight(Kg) | 1050 | 2000 | 3200 | 4200 | 8500 | 15500 | 21500 | |
| Utility | 3-phase AC380V 50/60Hz 0.5~0.8MPa | |||||||
| Requirements | ||||||||
| Conforming standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL |
|||||||
Shock Test Machine Application Standards
GB/T2423-2008, GJB1217, GJB360.23, GJB150, GJB548, MIL-STD-202F, IEC-68-2-27, MIL-STD-883E, MIL-STD-810F, ISTA, UL
Application Industry
Aviation, Aerospace, Vessel, Military industry, Consumer Electronics, Automobile, Household Appliances, Display Device etc.
Features
Warranty: 12 months after installation, lifelong time maintainance.
Certificate: China official Third-party Calibration Report / CE Certification
Our Services
| Pre-sales service |
| Technical Advisory: Testing method, laboratory planning and advice |
| Equipment Selection: Type-selecting scheme,FAQ |
| Product testing scheme |
| Selling service |
| Customer Communication,progress communication |
| Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning |
| Cooperate with measuring if need the third party verification |
| After-sale service |
| Quality assurance period for one year,lifelong maintenance. |
| Technical guidance |
| Feedback within 2 hours after get the call. |
| Accept OEM,Design service,Buyer lable |

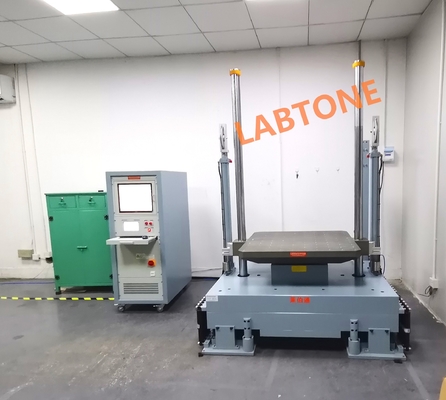

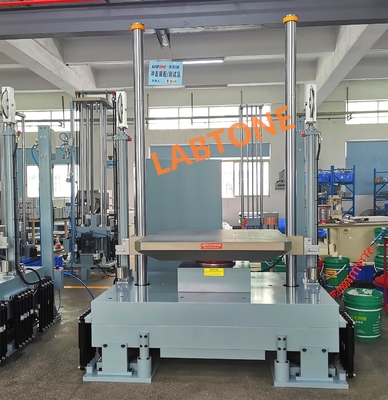

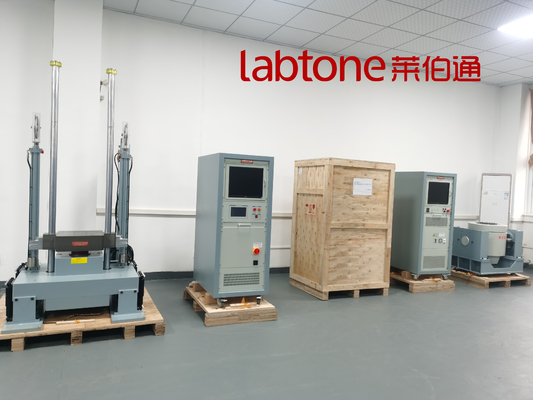

Detailed picture:
