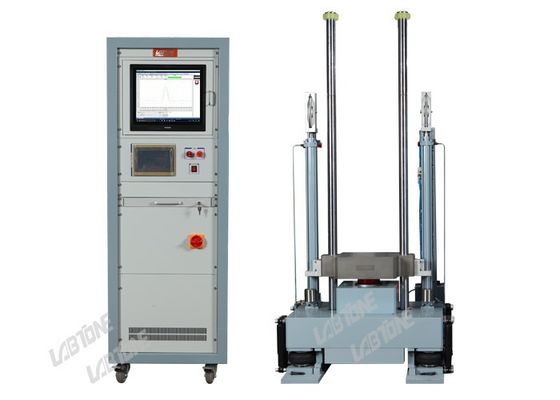

600g Acceleration Shock Testing System Suitable Shock Test For Aviation Aerospace

600g Acceleration Shock Testing System Suitable Shock Test For Aviation Aerospace
600g Acceleration Shock Testing System Suitable Shock Test For Aviation Aerospace
600g Acceleration Shock Testing System Suitable Shock Test For Aviation Aerospace 600g Acceleration Shock Testing System Suitable Shock Test For Aviation Aerospace

Large Image :  600g Acceleration Shock Testing System Suitable Shock Test For Aviation Aerospace

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: SKT50
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: International plywood case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month
Contact Now

600g Acceleration Shock Testing System Suitable Shock Test For Aviation Aerospace

Description
Model: SKT50 Table Size: 40*40cm
Specimen Max Weight(kg): 50kg Max. Acceleration (G): 600g
Pulse Duration Range (ms): 1~30ms Machine Weight: 1050kg
Highlight:

600g Acceleration Shock Test System

,

Deformation Shock Testing System

,

50Hz Shock Testing System



600g Acceleration Shock Test System Suitable Shock Test For Aviation, Aerospace And Other Device



The Application Of Shock Test

Products are inevitably affected by impact, bump, free fall, tumbling, etc. During production, transportation, loading and unloading as well as during the use of the products. All of these are transient excitation on the object, causing the object to produce mechanical characteristics of high speed, acceleration, strain rate, etc instantly. These kind of characteristics are completely different from that in static load, and may cause problems to the object in terms of structural strength and stability and sometimes the object may fail. Therefore, it is necessary to study the effect of impact and reproduce the shock environment, to assess the structural strength and performance of the object under shock environment.

Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging. To do a boundary assessment on complete product breakage, industrial standard shock pilse or company's internal standards, we can provide the most advanced shock test system to meet your application requirements.

Suitable shock tests for aviation, aerospace, marine, military, consumer electronics, automobiles, home appliances and display devices.

By selecting different waveform generators, it can perform half sinusoidal wave, sawtooth wave, or trapezoidal wave.





Specifications

Model SKT50 SKT100 SKT200 SKT300 SKT500 SKT1000 SKT1500
Table size (cm) 40 x 40 50 x 60 70 x 80 100 x 100 120 x 120 150 x 150 200 x 200
Maximum Specimen Weight(Kg) 50 100 200 300 500 1000 1500
Max acceleration(G) half sine 600 600 600 500 500 300 300
saw-tooth waveform 100 100 100 100 100 100 100
square 100 100 100 60 50 50 50
Pulse Duration (ms) half sine 30~1 30~2 30~2 20~3 20~3 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
square 12~6 12~6 12~6 12~6 12~6 12~6 12~6
Machine Dimension(cm) 82x90x195 120x105x245 130x120x260 150x130x260 200x160x300 230x180x310 250x250x310
Controller cabinet Dimension(cm) W55 x D50 x H80
Machine Weight(Kg) 1050 2000 3200 4200 8500 15500 21500
Power supply
 		 3-phase AC380V 50/60Hz 0.5~0.8MPa
Conforming standards

GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27

MIL-STD-883E MIL-STD-810F ISTA UL



Features

  1. Convenient touch screen operation.
  2. Complete safety protection system.
  3. Utilize pneumatically/hydraulically combined booster and braking system to prevent multiple impact.
  4. With air spring shock absorber and hydraulic shock damping mechanism, there will be no impact on the surrounding and no foundation required.



FAQ


1. Peak acceleration and pulse duration can perform?

5g@30ms, 15g@11ms, 30g@18ms, 50g@6ms, 50g@11ms, 50g@3ms, 100g@6ms, 200g@6ms, 200g@3ms, 500g@1ms etc.



2. How to select the suitable shock test system model?

Depends on the specimen weight, dimension and testing requirement.



3. The purpose of test?

  • Evaluate the product's structural integrity and functional stability under non-repetitive strong impact conditions during use.
  • Evaluate the fragility of the outer packaging of the product to protect the structural and functional integrity of the product during transportation.
  • When the product is installed on a platform where a collision may occur, it is necessary to assess and test the strength (fracture), rigidity (deformation) of the device used to fix the product on the platform, and the impact on the product.
  • Evaluate the impact of possible throw, drop, and free fall on product performance during loading and unloading, transportation or installation, and debugging.
