Product Details:
|
| Payload: | 2000kg | Table Size: | 1500 X 1500 |
|---|---|---|---|
| Adjustable Frequency: | 2~5Hz(120~300)RPM | Fixed Amplitude: | 1 Inch (25.4mm) |
| Power Supply: | AC 380V±10% 50Hz | Test Motions: | Rotary(Synchronous) |
| Highlight: | Rotary Synchronous Vibration Testing Machine,2000kg Payload Vibration Testing Machine,Mechanical Shaker Table for Simulation Transport |
||

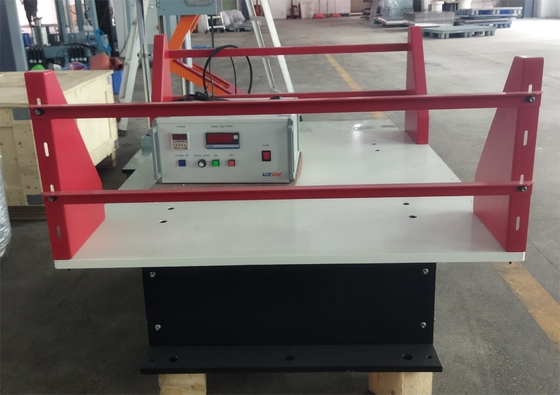

2000kg Payload Simulation Transport Vibration Testing Machine
Application
Transportation simulators performs repetitive shock, loose load, or bounce tests in accordance with ISTA, ASTM, TAPPI, ISO, MIL-STD, UN, DOT, and other industry, government, and international standards. YST series system operates on an eccentric cam principle, and can be easily adjusted to perform circular-synchronous or vertical linear motions. Transportation simulator is used in laboratory to simulate the truck transportation situation on different road conditions. The purpose is to inspect and estimate the performance of packaging in such conditions.
Transportation Simulators Specifications
| Model | YST100 | YST200 | YST500 | YST1000 | YST2000 |
Max Payload(kg) |
100 | 200 | 500 | 1000 | 2000 |
| Table Size(mm) |
1000x1200 | 1200x1200 | 1200x1500 | 1500x1500 | 1500x1500 |
| Frequency Range | 2~5Hz(120~300)RPM | ||||
| Displacement | 25.4mm Fixed | ||||
| Test Motions | Rotary (Synchronous) | ||||
| Power Supply | AC220V±10% 50Hz | 3-phase 380V±10% 50Hz | |||
Transportation Simulators Features
