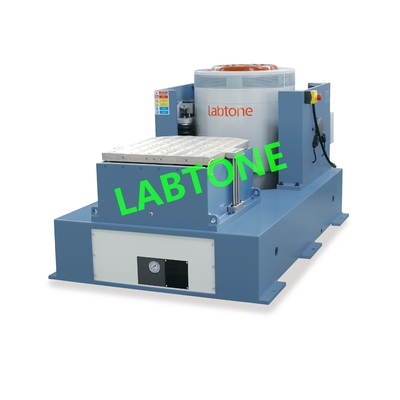

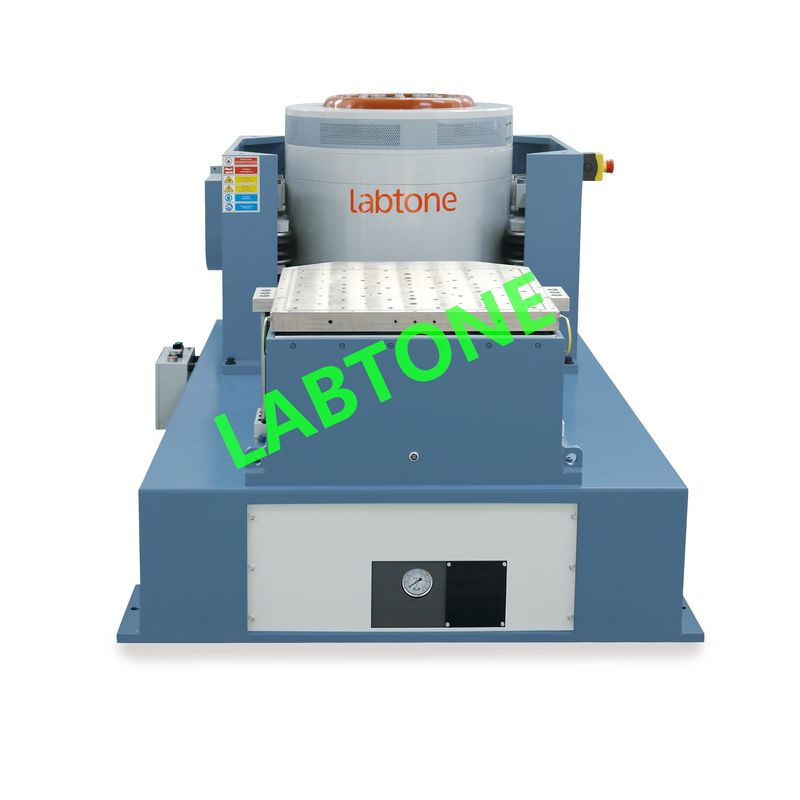

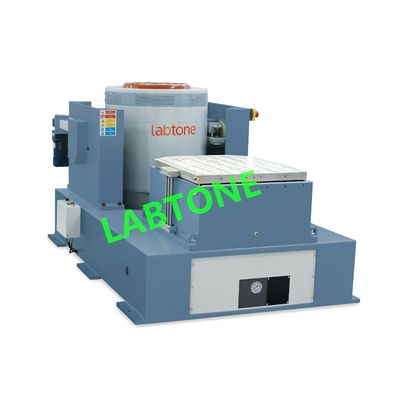

2m/S Vibration Test Machine For Electrical Meet IEC 60068-2-6

2m/S Vibration Test Machine For Electrical Meet IEC 60068-2-6
2m/S Vibration Test Machine For Electrical Meet IEC 60068-2-6
2m/S Vibration Test Machine For Electrical Meet IEC 60068-2-6 2m/S Vibration Test Machine For Electrical Meet IEC 60068-2-6 2m/S Vibration Test Machine For Electrical Meet IEC 60068-2-6 2m/S Vibration Test Machine For Electrical Meet IEC 60068-2-6

Large Image :  2m/S Vibration Test Machine For Electrical Meet IEC 60068-2-6

Product Details:
Place of Origin: Guangdong, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV220
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now

2m/S Vibration Test Machine For Electrical Meet IEC 60068-2-6

Description
Frequency Range: 2-3000 Hz Max. Displacement: 51 Mm
Armature Mass: 22 Kg Armature Diameter: ￠320 Mm
Power Supply: AC 3-phase 380V / 50Hz Max. Velocity: 2m/s
Highlight:

2m/s Vibration Test equipment

,

IEC 60068-2-6 Vibration Test machine

,

Vibration Test Machine For Electrical Meet





Vibration Test Machine For Electrical Products Meet IEC 60068-2-6





Vibration Test Table Specifications:



Model EV220-EV432





Model EV220 EV320 EV222 EV222B EV322 EV422 EV232 EV232B EV432
Amplifier Model LA20K LA20K LA30K
Shaker Model A20S32 A20T32 A20S34 A20S44 A20T34 A20F34 A30S34 A30S44 A30F44
Rated Sine Force(KN/Kgf) 20/2000 24/2400 22/2200 32/3200
Rated Shock Force(KN/Kgf) 40/4000 45/4500 44/4400 64/6400
Frequency Range(Hz) 5-2700 5-2500 5-3000 5-3000 5-3000 5-2,800 5-3000
Max. Acceleration Sine/Random(g) 90/60 85/60 100/60 100/60 90/60 70/60 100/60 85/60
Max. Velocity(m/s) 2.0
Max. Displacement Peak-Peak(mm) 51 76 51 51 76 100 51 100
Max. Payload(kg) 300 300 300 300 400 400 500
Armature Diameter(mm) 320 320 342 442 342 342 342 442 442
Resonance Frequency (Hz)(±5%) 2,200 2,200 2,600 2,600 2,700 2,400 2,500
Effective Moving Mass(kg) 24 24 24 25 30 30 30 35
Blower B752
Blower Power 7.5KW
Blower Volume Flow Rate/Pressure 41m3/min ;2.6kpa
System Power 42kVA 42kVA 56kVA





Working Principle of Vibration Exciter:

Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.



Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.

Key Applications:

  • Automotive parts and systems - qualification testing
  • Electronic assembly, computer equipment testing
  • Avionics and military hardware testing
  • Satellite component testing
  • Product and package testing
  • General stress screening


Features:

  • Internal load support is standard
  • Active armature suspension system
  • Standard body isolation and guidance system designed to eliminate the use of a seismic base
  • Useful vibration control frequency range from 5 to 3000 Hz
  • Some systems available with 76 mm (3 in) displacement
  • Perfect performance on amplitude variation.
  • Different application on the vertical and horizontal tables.
  • Simple operation for the controller.



Working Principle:



2m/S Vibration Test Machine For Electrical Meet IEC 60068-2-6 0





Customer Services:



Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.



Common Testing Standards:

  • ASTM D999-01 Standard Test Methods for Vibration Testing of Shipping Containers
  • ASTM D3580 – 95 (2010) Standard Test Methods for Vibration (Vertical Linear Motion) Test of Products
  • ASTM D4728 – 06 Standard Test Method for Random Vibration Testing of Shipping Containers
  • ISO 2247:2000 Packaging – Complete, filled transport packages and unit loads – Vibration tests at fixed low frequency
  • ISO 8318:2000 Packaging – Complete, filled transport packages and unit loads -Sinusoidal vibration tests using a variable frequency
  • ISO 9022-10:1998 Optics and optical instruments - Environmental test methods – Part 10: Combined sinusoidal vibration and dry heat or cold
  • ISO 9022-15:1998 Optics and optical instruments – Environmental test methods – Part 15: Combined digitally controlled broad-band random vibration and dry heat or cold
  • ISO 9022-19:1994 Optics and optical instruments - Environmental test methods – Part 19: Temperature cycles combined with sinusoidal or random vibration
  • IEC 60068-2-64 Environmental Testing Part 2: Test methods –Test Fh: Vibration, broadband randomand guidance



Detailed Pictures:





2m/S Vibration Test Machine For Electrical Meet IEC 60068-2-6 1
