Product Details:
|
| Name: | Mechanical Shock Test Equipment For Battery Tests 150g@6ms 50G@11ms | Table Size: | 50 X 60 Cm |
|---|---|---|---|
| Specimen Max Weight(kg): | 50 | Shock Pulse: | Half Sine |
| Acceleration: | 600g (6000m/s2) | Pulse Duration Range (ms): | 1-30ms |
| Highlight: | Battery Mechanical Shock Test Equipment |
||

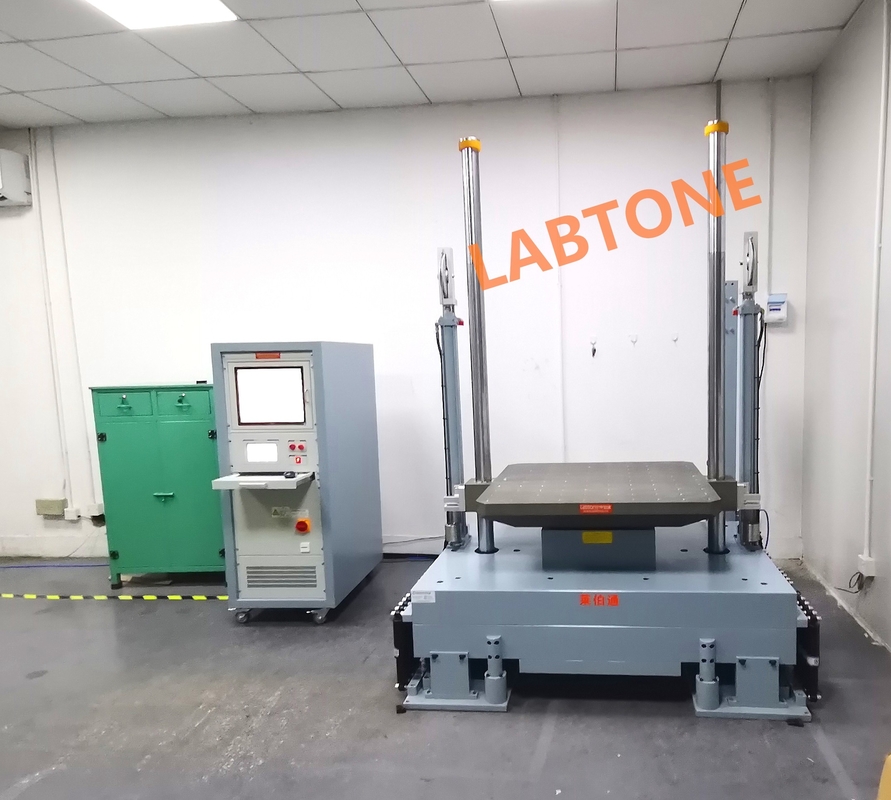

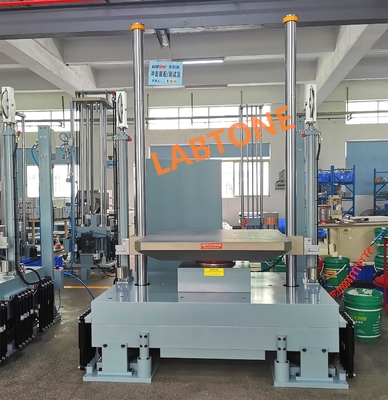

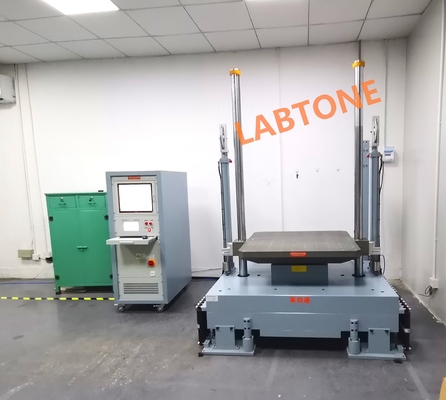

Mechanical Shock Test Equipment for Battery tests 150g@6ms 50G@11ms
Mechanical Shock Test Equipment Description
Our Mechanical Shock Test Equipment can generate different waveforms by configuring different waveform generators, such as different half-sine waveforms, sawtooth waves, and trapezoidal waves, to meet the various needs of our customers.
Mechanical Shock Test Equipment Specification:
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | ||
| Table Size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | ||
| Max. Specimen Weight(kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | ||
|
Max. Acceleration (G) |
Half Sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 | |
| Saw-tooth | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
| Square | 150 | 150 | 150 | 100 | 100 | 100 | |||
|
Pulse duration (ms) |
Half Sine | 30—0.5 | 30～1 | 30～1 | 30～2 | 20～3 | 20～3 | 20～3 | |
| Saw-tooth | 18～6 | 18～6 | 18～6 | 18～6 | 18～6 | 16～6 | 18～6 | ||
| Square | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | |||
| Controller cabinet dimension(cm) | W55*D50*H80 | ||||||||
| Machine weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 21500 | ||
| Power supply | 3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa | ||||||||
| Standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | ||||||||
| Model | HSKT10 | HSKT10D | HSKT15 | HSKT30 | HSKT35 |
| Table Size(mm) | 200 x 250 | 300 x 300 | 250 x 250 | 250 x 250 | 250 x 250 |
|
Max. Payload (kg) |
10 | 25 | 10 | 10 | 10 |
| Shock Pulse | Half Sine Wave | ||||
| Acceleration Range(G) |
20~2000 (bare table) |
20~10000 (bare table) |
20~15000 (bare table) |
20~30000 (bare table) |
20~35000 (bare table) |
| Pulse Duration(ms) | 0.2~18 | 0.1~11 | |||
The shock testing system of the SKT series is mainly applicable to shock resistance tests in such fields as electronic products, aerospace, shipping, military industry, automotive parts, and transportation. Shock tests in the form of the half-sine wave, final peak sawtooth wave or trapezoidal wave shock tests can be carried out by selecting different waveform generators.
The equipment conforms to such testing specifications as GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, UN38.3, MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, etc.
1) User-friendly touching screen operation.Half sine, square waveform shock pulse programmers.High rigidity shock tables.
2) Half sine, square waveform shock pulse programmers.
3) High rigidity shock tables.
4) A full range of safety features.
5) Apply air and hydraulic pressurization, strong friction brake avoiding secondary shock.
6) Apply air spring suspension, hydraulic damping shockproof system, no shock impact on the surrounding, without foundation
