Product Details:
|
| Drop Height: | 300-2000mm | Specimen Weight: | 85kg |
|---|---|---|---|
| Specimen Dimension: | 800*800*800mm | Drop Mode: | Freedom |
| Machine Dimension: | 1700*1200*2750mm | Machine Weight: | 550kg |
| Highlight: | package testing services,drop test equipment |
||

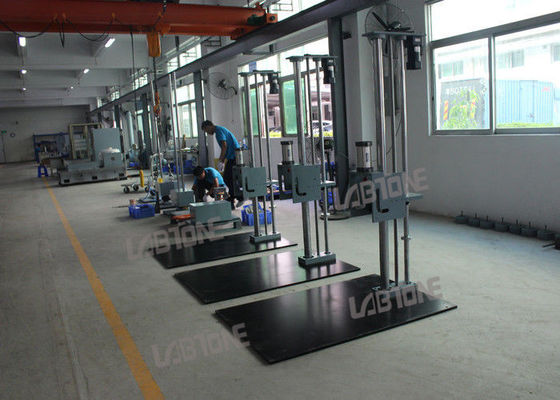

ISO standard Packaging Drop Test Machine Professional Manufacturer
Packaging drop tester is used to measure the dropping impact incidence when the package in using, transportation and decorating.
Labtone "1G+" project strictly ensure the accuracy. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
High Accuracy Drop Tester for Packaged Freight Features
1 Unique swing arm mechanism design, swing arm break away from acceleration more than 3 G/SEC.
2 With double column guide and hydraulic buffer absorb residual swing arm force, movements smooth, reliable, low noise.
3 Damping screw lifting mechanism, preventing drop institution unexpectedly glide.
4 Pneumatic automatic chain, preventing swing arm unusual break away.
5 Extensible support bracket and baseboard.
| Model | DT150 | DT200 |
| Drop height range (mm) | 300---1500 | 300----2000 |
| Specimen max.weight (kg) | 85 | 85 |
| Specimen max. size (mm) | 800*800*800 | 800*800*800 |
| Drop mode | Freedom | |
| Machine Dimension (mm) | 1500*1000*2150 | 1700*1200*2750 |
| Machine weight (kg) | 480 | 550 |
| Power supply | AC220V 50Hz compressed air 0.5~0.7Mpa | |
| Standards | ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27 | |
