Product Details:
|
| Weight Capacity: | 200kg～1500kg | Power Required: | AC220V / 50Hz |
|---|---|---|---|
| Compressed Air: | 0.5 Mpa-0.7 Mpa | Lifting Device: | Customer Supplied |
| Machine Weight: | 16 Kg | Machine Size: | 345 X 235 X 145 Mm |
| Name: | CE Marked Drop Tester Release Hooks For Quick Release Hook Drop Test | ||
| Highlight: | drop impact test machine,quick release hook drop test,CE Marked Drop Tester |
||
CE Marked Drop Tester Release Hooks For Quick Release Hook Drop Test
Introduction
The KDT2000 Drop Tester is designed to simulate the drops and mechanical hazards that occur in distribution. It is especially suited to very large, heavy payloads which cannot be tested on conventional drop test machines.

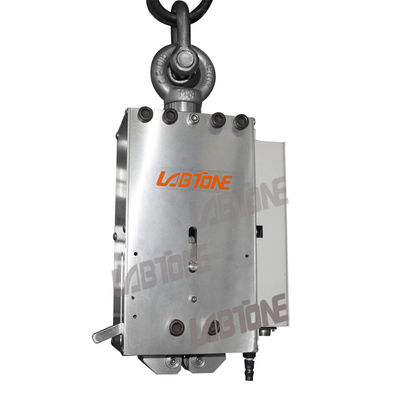

The KDT2000 consists of a quick-release mechanism, lifting ring, and foot-switch for initiating the drop. Straps wrapped around the test item form a sling that attached to the O type ring, which is placed in the latch jaws of the quick-release mechanism. The quick-release mechanism and test package are then lifted to a pre-determined height by a fork-lift, winch, or other lifting device (not included). Press the Remote Foot-switch causing the latch jaws to open and the package to fall.
Technical Specification
Weight Capacity: 200kg～1500kg
Power Required: AC220V / 50Hz ( or according to customer’s need)
Compressed Air: 0.5Mpa～0.7Mpa
Lifting Device: Customer Supplied
Weight of KDT2000 : 11kg ( excluding foot-switch, which is 5kg)
Size of KDT2000: 345 x 235 x 145 mm
Size of foot-switch: 270 x 200 x220 mm ( Lx D x H)
Features
Detailed Picture
Labtone Service
| Pre-sales service: |
| Technical Advisory: Testing method, laboratory planning and advice |
| Equipment Selection: Type-selecting scheme,FAQ |
| Product testing scheme |
| Selling service: |
| Customer Communication,progress communication |
| Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning |
| Cooperate with measuring if need the third party verification |
| After-sale service: |
| Quality assurance period for one year,lifelong maintenance. |
| Technical guidance |
| Feedback within 2 hours after get the call. |
| Accept OEM,Design service,Buyer lable |
