Product Details:
|
| Max Displacement: | 38 Mm | Max Exciting Force: | 300 Kg |
|---|---|---|---|
| Mass Of Armature: | 3 Kg | Diameter Of Armature: | Ф150 Mm |
| Control Computer: | 1 Set | Operating System: | Win 7 / 8 / 10 |
| Highlight: | electrodynamic vibration shaker system,vibration testing equipment |
||
ED Vibration Shaker Table for Transport Packaging ASTM D999, D4169, D5112, D4728
Vibration Test Systems
EV series of electromagnetic vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.
Main Parameters:
Max. sine exciting force: 300kg
Max. random exciting force: 300kg
Max. shock exciting force: 600kg
Frequency range: 1-300Hz
Max. displacement: 38 mm
Max. velocity: 2.0m/s
Max. acceleration: 100g (no-loading)
Vibration Table Features:
Meet Standards:
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries:
Automotive, Electronics, Aerospace, Vessel, Telecommunication, Optoelectronics, Instrument etc.
Equipment Configuration:
| Item | Configuration | Qty. |
| 1. | Vibration shaker | |
| VG300-40 electromagnetic vibration generator | 1 set | |
| BL-300 cooling blower (including silencer) | 1 set | |
| VT640 vertical table 400 x 400mm | 1 set | |
| Automatic centering system of armature | 1 set | |
| 2. | Digital switch power amplifier | |
| Amp3K digital switch power amplifier | 1 set | |
| Servo protection system | 1 set | |
| Excitation power supply | 1 set | |
| 3. | Digital vibration controller (integrated instrument cabinet) | |
| Master unit of digital vibration controller | 1 set | |
| System acceleration sensor | 1 pcs | |
| Control computer | 1 set | |
| Control software installation disc | 1 set | |
| 4. | Attached accessories | |
| Extension cable and duct hose | 1 set | |
| Operation instructions, inspection report, certificate, maintenance manual, etc. | 1 set | |
| Attached special tools | 1 set | |
| Vibration press rod / holddown strip fixture | 1 set |
Our Services:
| Service commitment and support | |
| Pre-sales service | Technical Advisory; |
| Equipment Selection; | |
| Product testing scheme. | |
| In-sales service | Close and effective communication with clients; |
| Timely and effectively solve the related issues. | |
| After-sales service | Warranty period of one year ; |
| Equipment installation and debugging; | |
| Technical training; | |
| Feedback within 2 hours after get the call. | |
| Others | Maintenance, modification and upgrade for the machine; |
| Design and producing for special fixtures and table | |

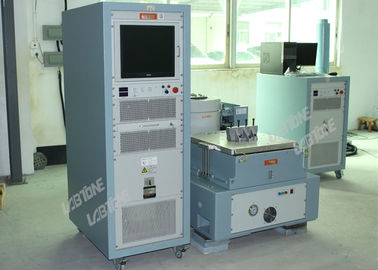

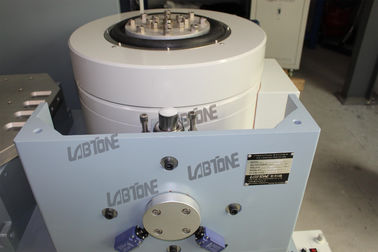

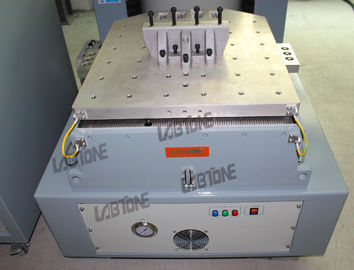

Detailed picture:
