Product Details:
|
| Sine Force: | 600 Kg.f | Max. Velocity: | 200 Cm/s |
|---|---|---|---|
| Maximum Displacement: | 51 Mm | Armature Mass: | 6 Kg |
| Payload: | 200 Kg | Power Amplifier: | 3-phase AC 380V 50Hz |
| Frequency: | 1-3000Hz | ||
| Highlight: | 600kg.F Electrodynamic Vibration Test System,3000Hz Electrodynamic Vibration Test System,DIN Electrodynamic Vibration Shaker |
||

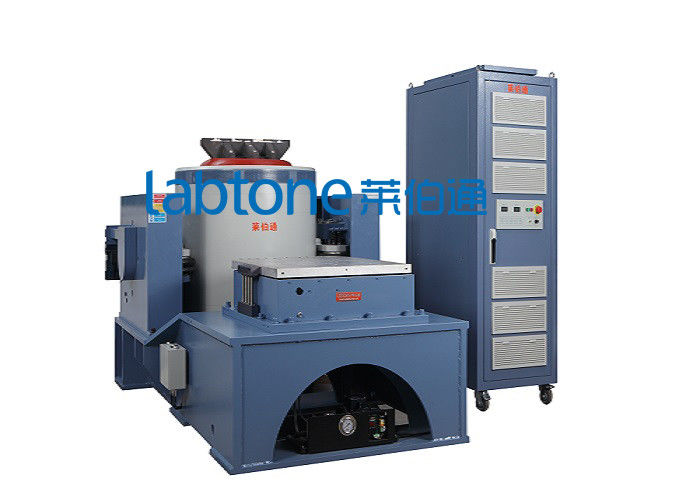

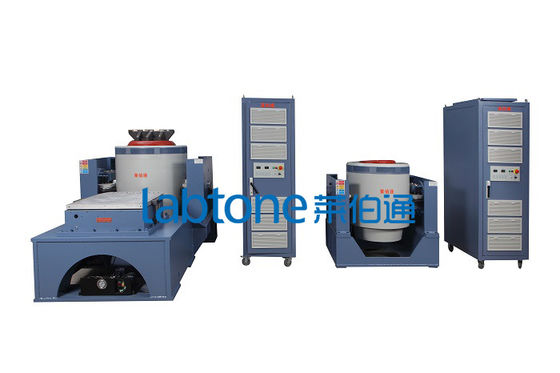

High Frequency Electrodynamic Vibration Test System For Automative Test Comply With MIL-STD DIN ISO ASTM IEC
Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Photoelectronics, Instrument etc.
Specifications
| Model | EV206 |
| Vibration Generator | VG300/50 |
| Frequency(Hz) | 1-3000 |
| Max Exiting Force(kg.f) | 600 |
| Max. Displacement (mmp-p) | 50 |
| Max. Acceleration(g) | 100 |
| Max. Velocity(cm/s) | 200 |
| Payload(kg) | 200 |
| Armature Mass(kg) | 6 |
| Armature Diameter(mm) | φ200 |
| Cooling Method | Air Cooling |
| Vibration Generator Weight(kg) | 920 |
| Vibration Generator Dimension L*W*H(MM) | 800*600*710 |
| Power Amplifier | Amp6k |
| Cooling Method | Forced Air Cooling |
| Power Amplifier Weight(kg) | 320 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz |
| Aggregate Capacity(KW) | 20 |
Features:
Use Scenarios
Packing and Shipping:
Please contact us to discuss your specific vibration testing needs and system requirements. With 18-years professional manufacture only focus on mechanical testing equipment, we will give you the best solution!
