Product Details:
|
| Sine Force Peak: | 300kg.f | Random Force: | 300kg.f |
|---|---|---|---|
| Frequency Range: | 1-3000 Hz | Vibration Controller: | 2 Or 4 Channels |
| Software: | Sine, Random, Shock, RSTD | Control Computer: | Acer |
| Highlight: | 3000 Hz Vibration Test Shaker,300kg.F Vibration Test Shaker,Electrodynamic Vibration Shaker |
||

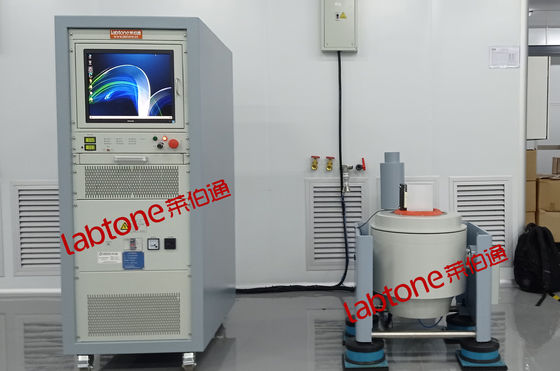

300kg.f Vibration Shaker for Lithium Battery Vibration Test IEC62133, UN38.3
Vibration Shaker Specifications: EV203-EV220
| Model | EV203 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/40 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 1-3000 | 1-3000 | 1-3000 | 1-2500 |
| Max Exiting Force(kg.f) | 300 | 600 | 1000 | 2000 |
| Max. Displacement (mmp-p) | 40 | 51 | 51 | 51 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 120 | 200 | 200 | 200 |
| Payload(kg) | 120 | 200 | 300 | 400 |
| Armature Mass(kg) | 3 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling | |||
| Vibration Generator Weight(kg) | 460 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*555*670 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling | |||
| Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||
| Aggregate Capacity(KW) | 9 | 20 | 25 | 35 |
The model selection of the vibration test system has the following steps:
1. Determine the test frequency range and limit peak motion (acceleration, velocity and displacement) according to the test conditions.
2. Determine the mass (DUT) of the item under test and the dimensions of the mounting surface required to bolt the DUT to a shaker table with its center of gravity (CG) over the table’s center. This may require use of a head expander and/or other mounting fixture. Determine the mass of such additional hardware including all mounting fasteners.
Look at the shaker specifications for the test system. Verify that the mass of the part under test and any mounting fixture is less than the maximum static load rating of the shaker. Verify that the component under test (or its mounting hardware) can be bolted to the shaker armature or head expander. Add the effective armature mass and expansion head mass to the mass of the object under test as well as the mass of any mounting clamps and fasteners and the mass of any accelerometers mounted on the object under test -- this is the total moving mass the shaker must move during the test. Multiply the total moving mass by the acceleration determined in step 1 to calculate the force required. Verify that the test and DUT required to determine the test frequency range, force, peak acceleration, peak velocity, and peak displacement is less than the corresponding performance rating of the selected shaker system. If this is true, the shaker chosen is acceptable. If not, a more powerful shaker is required.
Working Principle:
Application:
Services:
